產品詳細資料

PRODUCT ID
RB67 PROSD
(可用DM/ZD/M系列数码背)

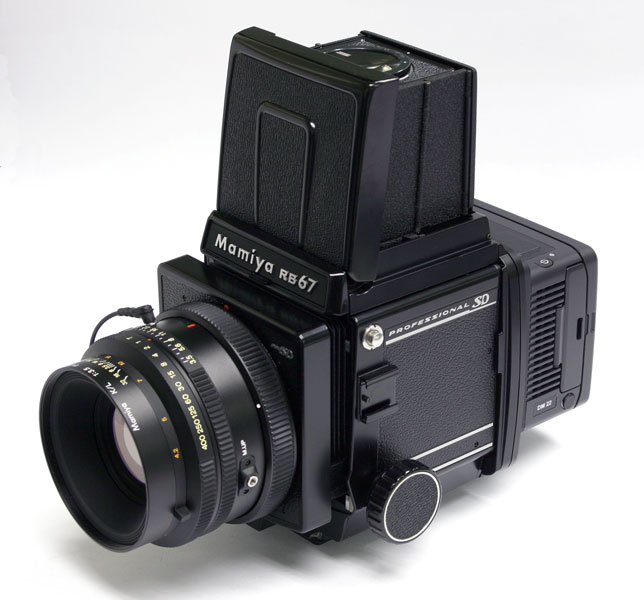

RB67 PRO SD Body CODE NO.Y21010

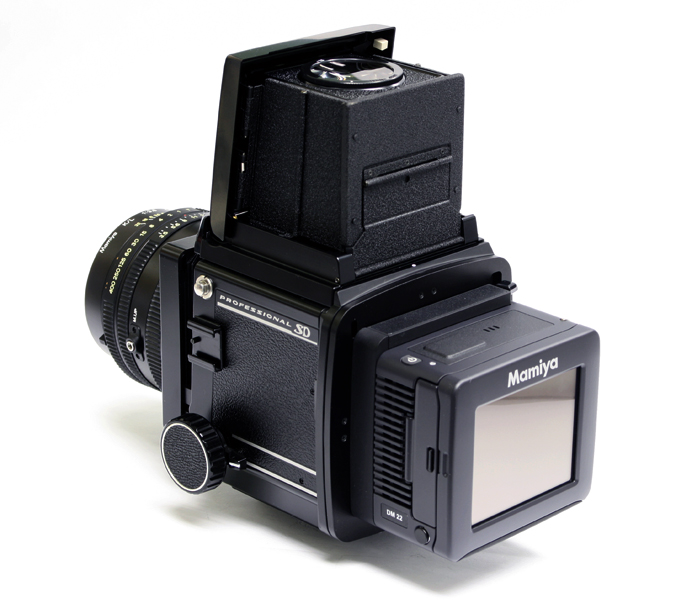

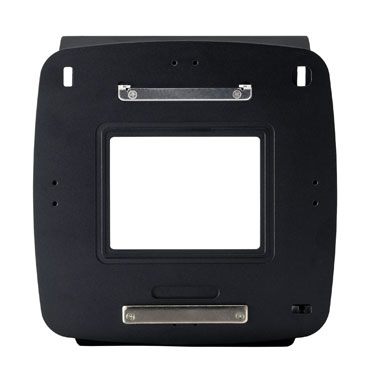

HX704CODE NO.514401转接器使用 DM 22/28/33 数码背 M18/22/31(停产)

DM22/28/33 or M18/22/31(discontinue) Digital Back Adapter HX704 for use with RB67。

-----------------------------------------------------------------------------------------------

CODE NO.514400

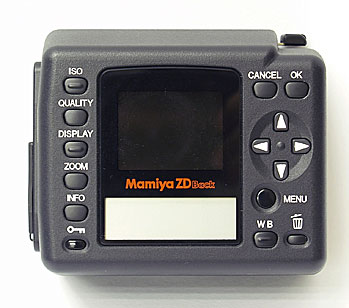

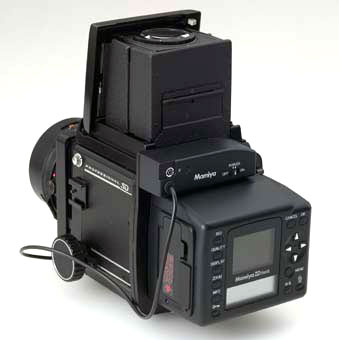

RB67可配:HX702 转接器使用ZD数码背(停产)


ZD Back(discountinue) Adapter HX702 for use with RB67。

-----------------------------------------------------------------------------------------------

享誉影楼界数十载的6X7公分单镜手动机械相机, 坚实可靠可换机背专业机.

型式:中型单眼相机 (可旋转机背)

使用软片:120(6x7)10张(6x4.5)17张 (6x8)9张

                 220(6x7)20张(6x4.5)30张(6x8)18张

                 宝丽莱8张 (HP701卷片盒)

对焦: 机身两面操作,蛇腹伸缩式。

观景器:腰平,眼平五棱镜。

快门:机械式镜头快门,T, 1-1/400秒,X 接点全速同步。

对焦片:可交换七种对焦片。

卷片:手动卷片,电动卷片,双重曝光。

重量:标准配备127mm 2690gm。

体积:104x144x233mm。

Type 6x7cm format
Leaf Shutter
Revolving Back
Bellows Focusing
Single Lens Reflex
Format 6x7cm, 6x4.5cm, 7.2x7.2cm (Quadra Back)
Interchangeable Film Magazines Revolving Back
Dark Slide Pocket
Dark Slide Safety Interlock
Lens Mount Breech-lock Bayonet
Lenses System of 18 interchangeable Leaf Shutter Lenses
Shutter Mechanically timed
1 second to 1/400 second
B and T setting
Mirror-up Operation
Shutter Release Standard mechanical cable release
Film Advance Double Action 114˚ Stroke
Optional power backs advance film automatically with single stroke
Multiple exposure Single action Multi switch on film magazine
Focusing Rack and pinion bellows focusing
Focus lock
46mm built-in bellows extension
Optional extension tubes
Focusing scale
Exposure compensation scale
Viewfinder Standard folding waist level with flip-up magnifier
Optional PD Prism Finder with spot and average metering patterns
Optional non-metering prism finder
Field of View 95% with automatic masking for vertical and horizontal revolving back position
Focusing Screen Standard Type A matte, seven additional interchangeable screens
Dimensions/Weight 4.1x5.7x9.2" (104x144x233mm)
5.9 lbs. (2690 g.) with 127mm lens and 120 magazine

________________________________________________________________________

RB67 Lens Specifications/ 鏡頭規格

魚眼鏡 37mm f/4.5 Fisheye 含濾光鏡一套 (相等於135照相機的18mm)    CODE NO. 512010


upload imagesThe 37mm f/4.5C fisheye renders unusual perspective with a full rectangular image and expansive 180?angle of view.
Linear distortion is apparent, and can be creatively used for unusual perspective of any scene or subject.
-Applications include interpretive landscape and architectural photography, advertising illustration, industrial and editorial assignments.
-Equivalent to 18mm in 35mm format.

魚眼鏡 37mm f/4.5 Fisheye w Filter Set    CODE NO. 512010
Optical Construction

光學結構(片/組)

9 elements/6 groups
Angle of View 視角 180˚
Diaphragm光圈 Automatic自動
Minimum Aperture最小光圈 f32
Shutter快門 Seiko #1 mechanical lens shutter, 1~1/400 sec., T (time), X contact (flash synchronization at all speeds)
Equivalent Focal Length for 35mm

相等於35mm片幅

18mm
Minimum Focusing Distance

最近對焦距離

10.1" / 257mm
Magnification放大倍率 1.2x
Area Covered涵蓋範圍 1.8 x 2.2" / 45 x 56mm
Filter Size濾鏡直徑 40.5mm
Lens Hood遮光罩 None Required 無
Dimensions尺寸 (L x W) 3.7 x 4.4" / 93 x 112mm
Weight重量 2 lbs. / 1,240 g.


角鏡 50mm f/4.5C (相等於135照相機的25mm)    CODE NO. 512111


upload imagesThe 50mm f/4.5C is an ultra-wide lens exhibiting minimal distortion and extreme depth of field, dramatically linking foreground and background subject matter.
-Applications include landscape, architecture and photojournalism.

-Equivalent to 25mm in 35mm format.

50mm f/4.5C w Hood        CODE NO. 512111
Optical Construction

光學結構(片/組)

11 elements/8 groups
Angle of View視角 81˚
Diaphragm光圈 Automatic自動
Minimum Aperture最小光圈 f32
Shutter快門 Seiko #1 mechanical lens shutter, 1~1/400 sec., T (time), X contact (flash synchronization at all speeds)
Equivalent Focal Length for 35mm

相等於35mm片幅

25mm
Minimum Focusing Distance

最近對焦距離

11" / 279mm
Magnification放大倍率 0.88x
Area Covered涵蓋範圍 2.5 x 3.1" / 63 x 79mm
Filter Size濾鏡直徑 77mm
Lens Hood遮光罩 Slip-on插入
Dimensions尺寸 (L x W) 2.9 x 3.7" / 73 x 94mm
Weight重量 1 lb. 12 oz. / 780 g.




角鏡 KL65mm f/4L (相等於135照相機的32mm)    CODE NO. Y21220


upload imagesThe KL 65mm f/4L is a wide angle lens with a 68˚ angle of view. It is the most popular wide angle focal length in 6x7cm format. It renders natural perspective with increased depth of field and angular coverage and provides the least amount of distortion, among the wide angle range, for subjects at the edges of the frame. It incorporates an adjustable floating element system for correction of edge sharpness and distortion, especially at wide open apertures and close distances.
-Applications include group portraits, wedding photography, and general purpose wide angle photography.
-Equivalent to 32mm in 35mm format.

KL 65mm f/4L w Hood       CODE NO. Y21220
Optical Construction

光學結構(片/組)

9 elements/8 groups
Angle of View視角 68˚
Diaphragm光圈 Automatic自動
Minimum Aperture最小光圈 f32
Shutter快門 Seiko #1 mechanical lens shutter, 1~1/400 sec., T (time), X contact (flash synchronization at all speeds)
Equivalent Focal Length for 35mm

相等於35mm片幅

32mm
Minimum Focusing Distance

最近對焦距離

1' 1.7" / 348mm
Magnification放大倍率 0.7x
Area Covered涵蓋範圍 3.2 x 3.9" / 80 x 100mm
Filter Size濾鏡直徑 77mm
Lens Hood遮光罩 Slip-on插入
Dimensions尺寸  (L x W) 4.2 x 3.8" / 106 x 97.2mm
Weight重量 2 lbs. 6 oz. / 1,070 g.




角鏡 KL75mm f/3.5L (相等於135照相機的37mm)    CODE NO. Y21230


upload imagesThe KL 75mm f/3.5 L features an adjustable floating element system for correction of edge sharpness and distortion, especially at wide open apertures and close distances.
-Applications include precise perspective for architectural or industrial rendering or table top photography.
-Equivalent to 37mm in 35mm format.

KL 75mm f/3.5L w Hood       CODE NO. Y21230
Optical Construction

光學結構(片/組)

9 elements/7 groups
Angle of View視角 61˚
Diaphragm光圈 Automatic自動
Minimum Aperture最小光圈 f32
Shutter快門 Seiko #1 mechanical lens shutter, 1~1/400 sec., T (time), X contact (flash synchronization at all speeds)
Equivalent Focal Length for 35mm

相等於35mm片幅

37mm
Minimum Focusing Distance

最近對焦距離

1' 2.9" / 379mm
Magnification放大倍率 0.61x
Area Covered涵蓋範圍 3.7 x 4.5" / 92 x 114mm
Filter Size濾鏡直徑 77mm
Lens Hood遮光罩 Slip-on插入
Dimensions尺寸  (L x W) 5.7 x 4.3" / 96.4 x 97.2mm
Weight重量 3 lbs. 12 oz. / 980 g.




移軸鏡 Shift 75mm f/4.5 SL (相等於135照相機的37mm)     CODE NO. Y21410


upload imagesThe SHIFT L 75mm f/4.5 SL  is a special application lens for perspective control. It features a unique wide field coverage and perspective control shift mechanism in a rotating mount, allowing the photographer to maintain proper linear perspective, identical to PC shift lenses for 35mm cameras.
-Applications include precise perspective control for architectural or industrial rendering or table top photography.
-Equivalent to 37mm in 35mm format.

移軸鏡 Shift 75mm f/4.5 SL w Release Adapter       CODE NO. Y21410
Optical Construction

光學結構(片/組)

11 elements/9 groups
Angle of View視角 61˚
Diaphragm光圈 Automatic自動
Minimum Aperture最小光圈 f32
Shutter快門 Seiko #1 mechanical lens shutter, 1~1/400 sec., T (time), X contact (flash synchronization at all speeds)
Equivalent Focal Length for 35mm

相等於35mm片幅

37mm
Minimum Focusing Distance

最近對焦距離

1' 4.4" / 416mm
Magnification放大倍率 0.6x
Area Covered涵蓋範圍 3.7 x 4.5" / 93 x 115mm
Filter Size濾鏡直徑 105mm
Lens Hood遮光罩 None Required 無
Dimensions尺寸  (L x W) 5.7 x 4.3" / 145 x 108mm
Weight重量 3 lbs. 12 oz. / 1,700 g.


標準鏡 KL 90mm f/3.5 L (相等於135照相機的44mm)     CODE NO. Y621110


upload imagesThe KL 90mm f/3.5 L is considered a wide-normal lens. Its 53˚ angle of view works well for a variety of subjects.
-Applications include general purpose photography from landscapes to full length or head and shoulders portraits. It works well for close-up photography with or without extension tubes. Floating Element design assures edge-to-edge sharpnes at all focusing distances.
-Equivalent to 44mm in 35mm format.

KL 90mm f/3.5 L w Hood    CODE NO. Y621110
Optical Construction

光學結構(片/組)

8 elements/7 groups
Angle of View視角 52˚
Diaphragm光圈 Automatic自動
Minimum Aperture最小光圈 f32
Shutter快門 Seiko #1 mechanical lens shutter, 1~1/400 sec., T (time), X contact (flash synchronization at all speeds)
Equivalent Focal Length for 35mm

相等於35mm片幅

44mm
Minimum Focusing Distance

最近對焦距離

1' 5.7" / 448mm
Magnification放大倍率 0.51x
Area Covered涵蓋範圍 4.4 x 5.4" / 111 x 138mm
Filter Size濾鏡直徑 77mm
Lens Hood遮光罩 Screw-in縲旋式
Dimensions尺寸 (L x W) 3.7 x 3.8" / 95 x 97.2mm
Weight重量 2 lbs. 2 oz. / 960 g.




標準鏡 KL 127mm f/3.5 L  (相等於135照相機的62mm)     CODE NO. Y21120

upload imagesThe KL 127mm f/3.5L is an excellent, all purpose normal lens. Its slightly long normal focal length makes it superb for close-focusing, portrait head shots, and three-quarter length portraits.
-Applications include general purpose photography from landscapes to portraits and close-up photography with the RB's built-in bellows or added extension tubes.

-Equivalent to 62mm in 35mm format.

KL 127mm f/3.5L w Hood   CODE NO. Y21120
Optical Construction

光學結構(片/組)

6 elements/4 groups
Angle of View視角 39˚
Diaphragm光圈 Automatic自動
Minimum Aperture最小光圈 f32
Shutter快門 Seiko #1 mechanical lens shutter, 1~1/400 sec., T (time), X contact (flash synchronization at all speeds)
Equivalent Focal Length for 35mm

相等於35mm片幅

62mm
Minimum Focusing Distance

最近對焦距離

2' 1.2" / 639mm
Magnification放大倍率 0.36x
Area Covered涵蓋範圍 6.1 x 7.6" / 155 x 192mm
Filter Size濾鏡直徑 77mm
Lens Hood遮光罩 Screw-in縲旋式
Dimensions尺寸  (L x W) 2.9 x 3.8" / 74 x 97.2mm
Weight重量 1 lb. 12 oz. / 780 g.




微距鏡 Macro KL 140mm f/4.5 M/L-A (相等於135照相機的68mm)    CODE NO. Y21420


upload imagesThe  Macro KL 140mm f/4.5 M/L-A features outstanding resolution at all distances and apertures, and adjustable flat field correction. The built-in floating element system allows correction of edge sharpness for copy work down to 1:1 life size with optional extension tubes.
The lens will focus from infinity to 1/3 life size magnification with the RB camera's built-in bellows.
-Applications include copywork, macro and close-up photography of all objects from product photography to flowers. Fashion and beauty photographers find the140mm f/4.5 Macro particularly useful for a variety of subject close-ups and normal shots. An extremely versatile lens, the 140mm f/4.5 Macro can also operate as an excellent normal focal length lens focusing to infinity for portraits, landscapes and general purpose photography.
-Equivalent to 68mm in 35mm format.

微距鏡 Macro KL 140mm f/4.5 M/L-A w Hood       CODE NO. Y21420
Optical Construction

光學結構(片/組)

6 elements/4 groups
Angle of View視角 35˚
Diaphragm光圈 Automatic自動
Minimum Aperture最小光圈 f32
Shutter快門 Seiko #1 mechanical lens shutter, 1~1/400 sec., T (time), X contact (flash synchronization at all speeds)
Equivalent Focal Length for 35mm

相等於35mm片幅

68mm
Minimum Focusing Distance

最近對焦距離

759mm
Magnification放大倍率 0.33x
Area Covered涵蓋範圍 6.8 x 8.4" / 173 x 214mm
Filter Size濾鏡直徑 77mm
Lens Hood遮光罩 Screw-in縲旋式
Dimensions尺寸  (L x W) 3.5 x 3.8" / 90 x 97.2mm
Weight重量 2 lbs. 7 oz. / 870 g.


遠攝鏡 KL 150mm f/3.5L (相等於135照相機的74mm)    CODE NO. Y21270


upload imagesThe KL 150mm f/3.5L is a short telephoto utilizing Mamiya's low dispersion glass with superior performance at all apertures.

Many table top, studio, portrait and fashion photographers find it an excellent choice for all purpose photography. It allows slightly closer working distance for portraits than longer lenses, facilitating a more informal and intimate approach.
-Applications include portraiture, fashion, beauty, landscape and studio product photography.
-Equivalent to 74mm in 35mm format.

KL 150mm f/3.5L w Hood   CODE NO. Y21270
Optical Construction

光學結構(片/組)

6 elements/4 groups
Angle of View視角 33˚
Diaphragm光圈 Automatic自動
Minimum Aperture最小光圈 f32
Shutter快門 Seiko #1 mechanical lens shutter, 1~1/400 sec., T (time), X contact (flash synchronization at all speeds)
Equivalent Focal Length for 35mm

相等於35mm片幅

74mm
Minimum Focusing Distance

最近對焦距離

2' 8.2" / 817mm
Magnification放大倍率 0.31x
Area Covered涵蓋範圍 183 x 227mm
Filter Size濾鏡直徑 77mm
Lens Hood遮光罩 Screw-in縲旋式
Dimensions尺寸  (L x W) 3.0 x 3.8" / 76 x 97.2mm
Weight重量 1 lb. 14 oz. / 840 g.




柔焦鏡 SF 150mm f/4.0C (相等於135照相機的74mm)    CODE NO. Y512200


upload imagesThe SF 150mm f/4.0C is a unique, special application lens offering variable soft focus and can be used as a normal application telephoto at smaller apertures. It is the prime lens for many portrait and wedding photographers because of its unusual and controllable soft focus effects using designed-in spherical abberation at apertures from f/4 to f/8 and a set of three diffusion discs. The combination creates soft focus images that appear sharp at the same time, eliminating the need for costly and time consuming retouching. At f/8 and smaller apertures, it renders completely sharp, normal images. Its 150mm focal length makes it ideal for small studio working distances.
-Equivalent to 74mm in 35mm format.

柔焦鏡 SF 150mm f/4.0C Variable Soft Focus w Hood      CODE NO. 512200
Optical Construction

光學結構(片/組)

5 elements/3 groups
Angle of View視角 33˚
Diaphragm光圈 Automatic自動
Minimum Aperture最小光圈 f32
Shutter快門 Seiko #1 mechanical lens shutter, 1~1/400 sec., T (time), X contact (flash synchronization at all speeds)
Equivalent Focal Length for 35mm

相等於35mm片幅

74mm
Minimum Focusing Distance

最近對焦距離

2' 9.7" / 856mm
Magnification放大倍率 0.3x
Area Covered涵蓋範圍 7.3 x 9.0" / 185 x 229mm
Filter Size濾鏡直徑 77mm
Lens Hood遮光罩 Screw-in縲旋式
Dimensions尺寸  (L x W) 3.3 x 3.7" / 84 x 94mm
Weight重量 1 lb. 12 oz. / 790 g.





遠攝鏡 KL 180mm f/4.5L-A (相等於135照相機的87mm)    CODE NO. Y21350


upload imagesThe KL 180mm f/4.5L-A is a compact mid range telephoto lens, and the most popular telephoto for the 6x7cm format. It yields a good camera to subject distance, slight flattening of portrait subjects, and exceptional sharpness.
-Applications include portraiture, fashion, landscape telephotography and sports.
-Equivalent to 87mm in 35mm format.

KL 180mm f/4.5L-A w Hood   CODE NO. Y21350
Optical Construction

光學結構(片/組)

4 elements/3 groups
Angle of View視角 28˚
Diaphragm光圈 Automatic自動
Minimum Aperture最小光圈 f45
Shutter快門 Seiko #1 mechanical lens shutter, 1~1/400 sec., T (time), X contact (flash synchronization at all speeds)
Equivalent Focal Length for 35mm

相等於35mm片幅

87mm
Minimum Focusing Distance

最近對焦距離

3' 7.3" / 1,099mm
Magnification放大倍率 0.26x
Area Covered涵蓋範圍 8.5 x 10.6" / 217 x 270mm
Filter Size濾鏡直徑 77mm
Lens Hood遮光罩 Screw-in縲旋式
Dimensions尺寸  (L x W) 4.4 x 3.8" / 112.3 x 97.2mm
Weight重量 2 lbs. 1 oz. / 930 g.




APO 遠攝鏡 KL 210mm f/4.5 (相等於135照相機的102mm)    CODE NO. Y21310


upload imagesThe KL 210mm f/4.5 APO is the shortest focal length in the Mamiya RB APO series, utilizing ultra-low dispersion glass and computer aided design to eliminate chromatic abberation common to telephoto lenses over 200mm focal length.
Resolution, color reproduction and overall sharpness are enhanced at all apertures because chromatic abberation is eliminated.
-Applications include fashion, beauty, portraiture, commercial, advertising and industrial photography.
-Equivalent to 102mm in 35mm format.

KL 210mm f/4.5 APO w Hood   CODE NO. Y21310
Optical Construction

光學結構(片/組)

7 elements/5 groups
Angle of View視角 24˚
Diaphragm光圈 Automatic自動
Minimum Aperture最小光圈 f45
Shutter快門 Seiko #1 mechanical lens shutter, 1~1/400 sec., T (time), X contact (flash synchronization at all speeds)
Equivalent Focal Length for 35mm

相等於35mm片幅

102mm
Minimum Focusing Distance

最近對焦距離

4' 8.4" / 1,432mm
Magnification放大倍率 0.22x
Area Covered涵蓋範圍 10.1 x 12.5" / 256 x 318mm
Filter Size濾鏡直徑 77mm
Lens Hood遮光罩 Screw-in縲旋式
Dimensions尺寸  (L x W) 4.7 x 3.8" / 119.1 x 97.2mm
Weight重量 2 lbs. 4 oz. / 1,020 g.




遠攝鏡 KL 250mm f/4.5L-A (相等於135照相機的118mm)    CODE NO. Y21360


upload imagesThe KL 250mm f/4.5L-A is an unusually compact long telephoto design, with five elements in four groups. It creates accentuated foreshortening and accentuated distance between foreground and background objects.
-Applications include telephotography, landscape, wildlife, sports and fashion photography, where compression effect is desired.
-Equivalent to 118mm in 35mm format.

KL 250mm f/4.5L-A w Hood   CODE NO. Y21360
Optical Construction

光學結構(片/組)

5 elements/4 groups
Angle of View視角 20˚
Diaphragm光圈 Automatic自動
Minimum Aperture最小光圈 f45
Shutter快門 Seiko #1 mechanical lens shutter, 1~1/400 sec., T (time), X contact (flash synchronization at all speeds)
Equivalent Focal Length for 35mm

相等於35mm片幅

118mm
Minimum Focusing Distance

最近對焦距離

6' 1.0" / 1,854mm
Magnification放大倍率 0.19x
Area Covered涵蓋範圍 11.8 x 14.6" / 299 x 371mm
Filter Size濾鏡直徑 77mm
Lens Hood遮光罩 Screw-in縲旋式
Dimensions尺寸 (L x W) 4.7 x 3.0" / 119 x 77.2mm
Weight重量 2 lbs. 8 oz. / 1,130 g.




APO 遠攝鏡 KL 250mm f/4.5L (相等於135照相機的119mm)    (停產)(DISCONTINUED)


upload imagesThe KL 250mm f/4.5L APO utilizes ultra-low dispersion glass and computer aided seven element, five group design to eliminate chromatic abberation common to telephoto lenses over 200mm focal length. Resolution, color reproduction and overall sharpness are enhanced at all apertures because chromatic abberation is eliminated.
-Applications include wildlife, sports, landscape, industrial, fashion and beauty.
-Equivalent to 119mm in 35mm format.

KL 250mm f/4.5L APO w Hood     (停產)(DISCONTINUED)
Optical Construction

光學結構(片/組)

7 elements/5 groups
Angle of View視角 21˚
Diaphragm光圈 Automatic自動
Minimum Aperture最小光圈 f45
Shutter快門 Seiko #1 mechanical lens shutter, 1~1/400 sec., T (time), X contact (flash synchronization at all speeds)
Equivalent Focal Length for 35mm

相等於35mm片幅

119mm
Minimum Focusing Distance

最近對焦距離

6' 1.3" / 1,860mm
Magnification放大倍率 0.19x
Area Covered涵蓋範圍 11.7 x 14.6" / 298 x 370mm
Filter Size濾鏡直徑 77mm
Lens Hood遮光罩 Screw-in縲旋式
Dimensions尺寸  (L x W) 5.4 x 3.8" / 137.8 x 97.2mm
Weight重量 3 lbs. / 1,370 g.




APO 遠攝鏡 KL 350mm f/5.6L (相等於135照相機的167mm)    (停產)(DISCONTINUED)


upload imagesThe KL 350mm f/5.6L APO utilizes ultra-low dispersion glass and computer aided design to eliminate chromatic abberation common to telephoto lenses over 200mm focal length.

Resolution, color reproduction and overall sharpness are enhanced at all apertures because chromatic abberation is eliminated. The 350mm APO lens includes tripod support bracket.
-Applications include long distance landscape, aerial, industrial and wildlife photography.
-Equivalent to 167mm in 35mm format.

KL 350mm f/5.6L APO w Hood     (停產)(DISCONTINUED)
Optical Construction

光學結構(片/組)

7 elements/6 groups
Angle of View視角 15˚
Diaphragm光圈 Automatic自動
Minimum Aperture最小光圈 f45
Shutter快門 Seiko #1 mechanical lens shutter, 1~1/400 sec., T (time), X contact (flash synchronization at all speeds)
Equivalent Focal Length for 35mm

相等於35mm片幅

167mm
Minimum Focusing Distance

最近對焦距離

11' 2.9" / 3,423mm
Magnification放大倍率 0.13x
Area Covered涵蓋範圍 16.5 x 20.5" / 420 x 521mm
Filter Size濾鏡直徑 77mm縲旋式
Lens Hood遮光罩 Screw-in
Dimensions尺寸  (L x W) 7.3 x 3.8" / 184.2 x 97.2mm
Weight重量 3 lbs. 3 oz. / 1,440 g.

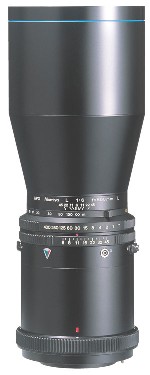

APO 遠攝鏡 KL 500mm f/6L (相等於135照相機的238mm)    CODE NO. Y21340

upload imagesThe 500mm f/6L APO is the longest telephoto utilizing ultra-low dispersion glass and computer aided design to eliminate chromatic abberation common to telephoto lenses over 200mm focal length.

Resolution, color reproduction and overall sharpness are enhanced at all apertures because chromatic abberation is eliminated. The 500mm APO lens includes tripod support bracket.
-Applications include long distance landscape, aerial, industrial and wildlife photography.
-Equivalent to 238mm in 35mm format.

500mm f/6L APO w Hood, Lens Holder & Trunk      CODE NO. Y21340
Optical Construction

光學結構(片/組)

7 elements/7 groups
Angle of View視角 10˚
Diaphragm光圈 Automatic自動
Minimum Aperture最小光圈 f45
Shutter快門 Seiko #1 mechanical lens shutter, 1~1/400 sec., T (time), X contact (flash synchronization at all speeds)
Equivalent Focal Length for 35mm

相等於35mm片幅

238mm
Minimum Focusing Distance

最近對焦距離

21' 3.8" / 6,493mm
Magnification放大倍率 0.09x
Area Covered涵蓋範圍 23.5 x 29.2" / 597 x 740mm
Filter Size濾鏡直徑 105mm
Lens Hood遮光罩 Slip-on插入
Dimensions尺寸  (L x W) 10.7 x 4.3" / 271.5 x 108mm
Weight重量 5 lbs. 3 oz. / 2,360 g.




變焦鏡 Zoom 100-200mm f/5.2W (相等於135照相機的48-97mm)   CODE NO. 517430


upload imagesThe Zoom 100-200mm f/5.2W  features  a 14 element 12 group design with a focal length range that is ideal for studio use. One lens can be used for full length portraits to head shots eliminating the need to change lenses, synch cords or camera position, throughout a sitting. Because of Mamiya computer aided design and manufacturing techniques, the 100-200mm Zoom provides image performance equal to prime focal length lenses. It offers a choice of helicoid or camera bellows focusing. A tripod support bracket is included.
-Applications include studio portraiture, fashion and landscape photography.
-Equivalent to 48-97mm zoom in 35mm format.

變焦鏡 Zoom 100-200mm f/5.2W w Hood       CODE NO. 517430
Optical Construction

光學結構(片/組)

14 elements/12 groups
Angle of View視角 47˚~ 26˚
Diaphragm光圈 Automatic自動
Minimum Aperture最小光圈 f45
Shutter快門 Seiko #1 mechanical lens shutter, 1~1/400 sec., T (time), X contact (flash synchronization at all speeds)
Equivalent Focal Length for 35mm

相等於35mm片幅

48 ~ 97mm
Minimum Focusing Distance

最近對焦距離

Wide Angle廣角 1' 9.6"/548mm ~ 遠攝Telephoto 3' 11.9"/1,217mm
Magnification放大倍率 Wide Angle 0.45 ~ Telephoto 0.24x
Area Covered涵蓋範圍 Wide Angle廣角 5.0 x 6.1" / 126 x 156mm
Telephoto遠攝 9.3 x 11.6 "/ 237 x 294mm
Filter Size濾鏡直徑 77mm
Lens Hood遮光罩 Slip-on插入
Dimensions尺寸  (L x W) 6.5 x 4.3" / 166 x 108.5mm
Weight重量 3 lbs. 11 oz. / 1,660 g.



Film Holder Equipments 菲菻盒設備

upload images
120 Roll Film 6x7 HA701

捲片盒 CODE NO. Y21610

upload images
220 Roll Film 6x7 HB701

捲片盒 CODE NO. Y21630

upload images
120 Roll Film 6x4.5 HA702

捲片盒 CODE NO. Y21650

upload images
220 Roll Film 6x4.5 HB704

捲片盒 CODE NO. Y21670

upload images
6x7 120/220 Power Drive Roll Film Holder II

電動捲片盒 CODE NO. 514244

upload images
6x8 120/220 Power Drive Roll Film Holder

電動捲片盒CODE NO. 514248



Mamiya's exclusive revolving back system allows you great freedom in camera positioning and an extensive choice of films and formats. Interchangeable magazines permit a wide variety of films to be used by simply changing magazines or film holders at any time during a shooting session: 120, 220, Polaroid Pack Film, or Kodak and Polaroid Sheet Films.

A choice of 4 format sizes allows you to pick the perfect format for each job. Additionally, there are 2 formats for instant proofing.

Roll film is advanced with a single 114˚stroke of the Cocking Lever, and can also be advanced with the Film Advance knob of the Film Holder. Extra Magazines allow mid-roll change to other films.

Additional Features:
Built-in double exposure prevention, multiple exposure provision, automatic film wind-stop release. Fully meter coupled with built-in Film Speed Dial. Exposure Counter with automatic return. Film-unadvanced indicator, automatic Dark Slide lock and release Memo Clip, built-in Dark Slide slot.

Type

 菲菻盒種類

120 Roll Film Mag. 220 Roll Film Mag. 6 x 4.5 120 Roll Film Mag. 6 x 4.5 220 Roll Film Mag. 6 x 7 120/220 Power Drive Mag. 6 x 8 120/220 Power Drive Mag. Polaroid 寶麗萊Film Pack Holder
Film Type

菲菻種類

120 Roll Film 220 Roll Film 120 Roll Film 220 Roll FIlm 120 or 220 Roll FIlm 120 or 220 Roll Film Polaroid Pack Film (100 & 600 Series)
Image Size on Film

影像尺寸

56 x 69.5mm 56 x 69.5mm 56 x 41.5mm 56 x 41.5mm 56 x 69.5mm 56 x 76mm 69.5 x 69.5mm
# of Exp.

可照張數

10 exp. 20 exp. 15 exp. 30 exp. 10/20 exp. 9/18 exp. 8 exp.
Weight

重量

16.8 oz., 475g 16.8 oz., 475g 16.6 oz., 470g 16.6 oz., 470g 19.4 oz., 550g 19.4 oz., 550g 11.3 oz., 320g


 Focusing Screen對焦片upload images

7 types available to be used according to the lenses and shooting purpose and conditions.



upload images Type A Matte(A型磨沙): All matte with Fresnel lens, suited for general purpose photography. (Supplied with camera)

CODE NO. 514621



upload images Type A (6X8 Matte)(A型6X8磨沙):All matte with Fresnel lens, suited for general purpose photography.

 For use with the Power Drive Holder 6x8: bright viewfinder image.
CODE NO.514627

upload images Type A4 Checker(A4型橫直線): Same as Matte, but with perpendicular grid. Pattern ideal as a compositional aid. Grid intersections also useful as reference points for multiple exposures.
CODE NO. 514622
upload images Type B Range finder Spot(B型中央圓圈裂像): Same as Matte, but with a vertical central split-image rangefinder wedge added. Matte surface can be used for focusing, but the vertical split-image feature makes focusing easier and more accurate for subjects such as portraits.
CODE NO. 514623
Type C Microprism(C型微稜): Same as Matte, but with central microprism spot added. Provides an alternative Rangefinder Spot screen with same benefit of enhanced focusing precision.

CODE NO. 514624

upload images Type D Cross Hair(D型十字星光鏡片): All matte screen with small aerial (totally transparent) spot with cross hairs. Used for parallax focusing and designed for special high magnification applications. Especially suited for macro and telephoto photography.

 CODE NO. 514625

Type E Range finder Spot/Microprism(E型中央圓圈裂像/微稜): Same as Matte, but with a 45˚ split-image rangefinder wedge surrounded by a microprism collar. Highly versatile 3-way focusing (rangefinder, microprism, and matte). Ideal for general purpose photography.

CODE NO. 514626

Diopter Lense for RB/RZ Waist Level Finder

RB/RZ腰平觀景器屈光片

+1   CODE NO.514571
+0   CODE NO.514572
-1    CODE NO.514573
-1.5 CODE NO.514574
-2    CODE NO.514575
-3    CODE NO.514576

Eye Correction Lenses For RB/RZ Prism Finder

RB/RZ眼平觀景器矯視片

+3   CODE NO.514581
+2   CODE NO.514582
+1   CODE NO.514583
-0.5 CODE NO.514584
-1    CODE NO.514585
-2    CODE NO.514586
-3    CODE NO.514587
-4    CODE NO.514589

Interchangeable viewfinders system

觀景器裝備

  This system is composed of a Waist-level Finder, Eye-level Prism Finder 2 and PD Prism Finder with average (A) / spot (S) metering selection to suit specific situations.


Automatic Metering 自動測光 Non-metering System無測光
PD Prism Finder Eye-level Prism Finder 2 Waist-level Finder FW701





Waist-level Finder FW701

腰平觀景器

CODE NO.Y21530

  This lightweight reflex viewfinder opens and closes with the touch of a finger, and includes a magnifier for easy and critical focusing.


upload images


Specifications
Type Opens and closes at a single touch
Shield with magnifier
Magnification 1.5 (magnifier magnification 3) with 127mm f/3.5  ?
Diopter adjustment Standard -1.5 diopter; 5 types of diopter correcting magnifiers from +1 to -3 diopter
Dimensions 98(W)28(H)95(L)mm (when stored)
Weight 150g


  Eye-level Prism Finder 2

眼平觀景器2型

CODE NO.518411

  With a viewing angle of 30˚, it is and unreversed, laterally correct image eye-level finder.
Ideal for eye-level shots.
  upload images
Specifications
Type Viewing angle of 30˚;
unreversed, laterally correct image eye-level finder
Magnification 0.9 (magnifier magnification 1.8) with 127mm f/3.5  ?
Diopter adjustment 8 types of diopter correcting lens
(+3-4 diopter)
Accessories with eyecup
Dimensions 97(W)80(H)205(L)mm
Weight 880g


  PD Prism Finder

PD眼平觀景器
CODE NO.518530




Eye-level prism finder with Average (A), Spot (S) selectable metering.

內置平均(A),重點(S)測光



upload images


Specifications
Type Viewing angle of 30˚;
unreversed, laterally correct image eye-level finder
Metering Average (A) / Spot (S) zero-method selection TTL exposure measurement at open aperture
Metering range EV3.6 (f/3.5 at 1sec.) to EV18.5 (f/32, 1/400sec.) with 127mm f/3.5  ISO 100
Shutter speed range 11/400sec. reading system
Aperture range 2.845 reading system
Viewfinder information Glowing or blinking digital display with red, orange or green L.E.D
Coupled film speed ISO 126400
Spot metering area 7.3% of picture area in the center
Magnification 0.9 (magnifier magnification 1.8) with 127mm f/3.5  ?
Diopter correction 8 types of diopter correcting lens
(+3-4 diopter)
Power source 6V alkaline manganese battery 4LR44 or 6.2V silver oxide battery 4SR44 (1)
Accessories with eyecup
Dimensions 97(W)80(H)205(L)mm
Weight 920g (without battery)



近摄环



Auto Extension Tube NA701

CODE NO.Y21711

upload images
Auto Extension Tube NA702

CODE NO.Y21712



upload images

  Specifications
  Auto Extension Tube NA701 Auto Extension Tube NA702
Diaphragm Support Automatic Diaphragm
Dimensions
WidthDiameter
4597.2mm 8297.2mm
Weight 370g 490g



Polaroid Land Pack Film Holder HP701 CODE NO. Y21660


upload images寶麗萊捲片盒 HP701



Mirror Lock-up Cable Release / 雙頭反光鏡快門繩


upload images
CODE NO. 514140



Magnifier (for Prism Finder) / 放大鏡(用於眼平觀景器)


upload images
CODE NO. 524350

Attached to the prism finder, it assures enhanced precision focusing by magnifying the central portion of the screen. After focusing, it can be raised to confirm overall composition. Built-in -6 to +4 diopter correction.
Weight: 70g.           內置視差補償-6 至 +4



Bellows Lens Hood G-2 / 風琴型伸縮遮光罩G-2



upload images
CODE NO.524080


Bellows Lens Hood G-3 w Gelatine Filter Mount /風琴型伸縮遮光罩G-3 (有濾片夾)


The G-3 can be used with lenses of focal length from 65mm to 350mm and 100~200mm Zoom lenses except for the 75mm shift lenses. Weight: 335g.

upload images
CODE NO. 528085

Front Hood for G-3/給風琴型伸縮遮光罩G-3延伸遮光使用


Lenses from 127mm to 350mm except for the 75mm shift lens, 100~200mm Zoom lens can be used with this combination for the suitable forcal lenght. Weight: 145g.

upload images
CODE NO. 524086



規格與性能視實際情況而定,如有任何更改恕不另行通知。

Specifications changes without any notices



05/4/2012



| About Us | Products | News | User Gallery | Download | Mamiys History | Contact Us |
TEL電話: (852) 23349381    FAX傳真:(852) 27640243 EMAIL : info@sellenhk.com 2007 ©Sellen All Rights Reserved .
