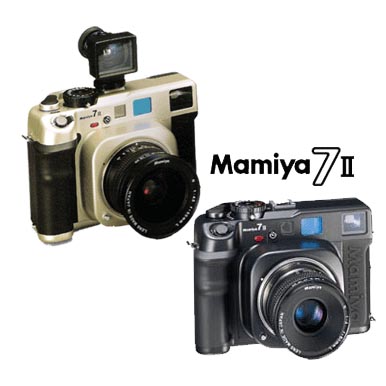

Mamiya 7II THE ULTIMATE 6x7 RANGEFINDER
Mamiya 7II  黑色(black) CODE NO.530030 /
 香滨金(champagne gold) CODE NO.533032
可拍6X7或135全景底片专业相机, 轻巧高质素, 户外户内皆宜.
型式：中型旁轴相机
使用镜头 :43mm,50mm,65mm,80mm,15Omm,210mm
使用胶卷 :120(6x7)10张 ,220(6x7)20张
135宽画面套件( 另胸) : 135-36(宽画面16张)
135-24(宽画面10张)
焦距 :镜头直进转动式。
调焦 :镜头偏角式 ,实象双重合致式。
快门 :电子式镜头快门 B, 4秒-1/500秒
x接点全速同步, 电子式自拍I0秒。
测光 :AE自动测光 ,光圈优先
(曝光修正，+/-2EV、1/3EV進格)
窗口 :调焦连动视框 ,视写自动修正
(交换镜头视框自动切换 ,43,50,210mm除外)
卷片 :手动卷片 ,可双重曝光空片防止。
电池 :银电池6V一个(4SR44或4LR44)。
重量 :附80mm标准镜头：1210g。
体积 :附80mm标准镜头：159x112x120mm。
|
| Type 相机种类 |
6x7 format rangefinder with interchangeable lenses
6x7 片幅 可交换镜头连动式相机(56 x 69.5mm with 120/220 roll film) |
| Film 菲菻 |
120 (10 exposures张), 220(20 exposures张) |
| 135mask 菲菻全景器 (另购) |
Optional interchangeable panoramic insert mask (135菲菻全景拍摄)
(24 x 65mm with 135 roll film)*16 with 36-expousure film,10 with 24 expousure film. 36幅包装可拍16张 ,24幅包装可拍10张 |
| Shutter 快门 |
Electromagnetic full flash synch lens shutter 镜间快门
4 sec. - 1/500 sec., B
X synchronization at all speeds 全频快门同步
-Hot shoe 闪光灯热脚
-Synch-socket 闪光灯接孔
Self cancelling self timer 有自拍
Double exposure capability 可双重曝光 |
| Metering 测光 |
Built-in metering 内置式测光表
SPD sensor in finder
range 测光范围: EV3 (f/ @ 2 sec.) ~ EV18 (f/22 @ 1/500 sec.) with 80mm f/4 lens at ISO 100
Film Settings 菲菻速度: ISO 25 ~ 1600
Exposure Corrections 曝光补偿: +/- 2EV in 1/3 step via Compensation Dial
Aperture Priority AE or manual metering modes 光圈先决/手动 |
| Viewfinder 取景器 |
Rangefinder coupled 连动式对焦
Automatic parallax compensating 自动视差补偿
Automatic bright line selection 自动显示取景框(65mm, 80mm, 150mm)
Readout shutter speed LED indicator 发光二极管显示快门速度
Separate ultra-wide optical finder supplied 独立超广角取景器给 with 43mm or 50mm lens |
| Power 电源 |
One 6V PX28 alkaline silver oxide or lithium (4SR44, 4LR44 or 2CR1/3 lithium) battery. 1枚6v电池 |
| Dimensions/Weight尺寸/重量 |
159 x 112 x 123mm (6.2 x 4.4 x 4.8")
1210 g. (2.6 lbs.) with 80mm lens |
注:
如欲配置Mamiya数码后背使用，请选购Mamiya 645AFD系列,645DF,RB67和RZ67proIID相机，其它型号全不适用。
N 43mm f / 4.5L 超广角镜头(附光学观景器) CODE NO. 532110
约等于21mm(135相机)
 The Mamiya 43mm/ f4.5L  is a true wide angle design that produces unparalleled results with a maximum of 0.04% distortion at the corners. The 43mm/ f4.5L opens up a new world of distortion-free ultra-wide angle photography. Supplied with ultra-wide optical finder. The detachable ultra-wide optical finder is used for composition. It features a built-in, adjustable diopter, rubber eyecup, and built-in spirit level.
Applications include reportage, landscape, architecture and industrial photography.
Equivalent to 21mm in 35mm format.
| Ultra-Wide Angle 43mm/ f4.5L with Special Finder Specifications 规格 |
| Lens Design光学结构（片／组） |
10 elements/6 groups |
| Angle of View视角 |
92˚ |
| Minimum Aperture最小光圈 |
22 |
| 35mm Equivalent相等于35mm片幅 |
21mm |
| Minimum Focus最近对焦距离 |
3' 3.4" / 1m |
| Maximum Magnification最高放大倍率 |
0.049X |
| Minimum Image Area最小影像范围 |
45.1 x 56.0" / 1145 x 1421mm |
| Filter Diameter滤镜直径 |
67mm |
| Lens Hood (supplied with lens)遮光罩 |
Bayonet插力式 |
| Dimensions体积(L x W) |
1.7 x 2.8" / 42 x 72mm |
| Weight重量 |
14 oz. / 390 g. | ___________________________________________________________________________
N 50mm / f4.5L 广角镜头(附光学观景器) CODE NO. 532140
约等于25mm(135相机)
 The Mamiya 50mm/ f4.5L  is a true wide angle design that produces superb results. The 50mm/ f4.5L opens up a new world of distortion-free ultra-wide angle photography. Supplied with ultra-wide optical finder. The detachable ultra-wide optical finder is used for composition. It features a built-in, adjustable diopter, rubber eyecup, and built-in spirit level.
Applications include reportage, landscape, architecture and industrial photography.
Equivalent to 25mm in 35mm format.
| Super Wide Angle 50mm/ f4.5L Specifications 规格 |
| Lens Design光学结构（片／组） |
10 elements/6 groups |
| Angle of View视角 |
84˚ |
| Minimum Aperture最小光圈 |
22 |
| 35mm Equivalent相等于35mm片幅 |
25mm |
| Minimum Focus最近对焦距离 |
3' 3.4" / 1m |
| Maximum Magnification最高放大倍率 |
0.063X |
| Minimum Image Area最小影像范围 |
35.2 x 43.7" / 895 x 1111mm |
| Filter Diameter滤镜直径 |
67mm |
| Lens Hood (supplied with lens)遮光罩 |
Bayonet插力式 |
| Dimensions体积(L x W) |
3.16 x 7.83" / 55 x 72mm |
| Weight重量 |
16.2 oz. / 460 g. |
N 65mm/ f4L 广角镜头 CODE NO.532150
约等于32mm(135相机)
 The Mamiya 65mm f/4.0L  is a true wide angle design with distortion-free performance that produces results virtually indistinguishable from standard focal length lenses, yet allows the unique perspective and spatial relationships possible with a wide angle view.
Applications include reportage, landscape, group portraits and general purpose wide angle photography.
Equivalent to 32mm in 35mm format.
| Wide Angle 65mm/ f4L Specifications 规格 |
| Lens Design光学结构（片／组） |
8 elements/5 groups |
| Angle of View视角 |
69˚ |
| Minimum Aperture最小光圈 |
22 |
| 35mm Equivalent相等于35mm片幅 |
32mm |
| Minimum Focus最近对焦距离 |
3' 3.4" / 1m |
| Maximum Magnification最高放大倍率 |
0.078X |
| Minimum Image Area最小影像范围 |
28.3 x 35.1" / 719 x 892mm |
| Filter Diameter滤镜直径 |
58mm |
| Lens Hood (supplied with lens)遮光罩 |
Bayonet插力式 |
| Dimensions体积(L x W) |
2.6 x 2.6" / 65 x 67mm |
| Weight重量 |
13 oz. / 380 g. |
N 80mm/ f4L 标准镜头 CODE NO.531010
约等于39mm(135相机)
 The Mamiya 80mm/ f4L  is a standard lens using a symmetrical design for exceptional performance. For the fast and spontaneous shooting style associated with rangefinder camera designs, the 80mm focal length is a logical choice as a wide-normal lens.
Applications include general purpose, fashion, portraiture and landscape photography.
Equivalent to 39mm in 35mm format.
| Standard 80mm/ f4L Specifications 规格 |
| Lens Design光学结构（片／组） |
6 elements/4 groups |
| Angle of View视角 |
58˚ |
| Minimum Aperture最小光圈 |
22 |
| 35mm Equivalent相等于35mm片幅 |
39mm |
| Minimum Focus最近对焦距离 |
3' 3.4" / 1m |
| Maximum Magnification最高放大倍率 |
0.097X |
| Minimum Image Area最小影像范围 |
22.9 x 28.3" / 580 x 719mm |
| Filter Diameter滤镜直径 |
58mm |
| Lens Hood (supplied with lens)遮光罩 |
Bayonet插力式 |
| Dimensions体积(L x W) |
2.2 x 2.6" / 56 x 67mm |
| Weight重量 |
10 oz. / 290 g. |
N 150mm/ f4.5L 远摄镜头 CODE NO.532210
约等于71mm(135相机)
 The Mamiya 150mm/ f4.5L  is a moderate telephoto, using a unique design of six elements in five groups, along with low and ultra-low dispersion glass to create apochromatic performance matched to the entire group of Mamiya 7 lenses.
Applications include portraiture, fashion, landscape and aerial photography.
Equivalent to 71mm in 35mm format.
| Telephoto 150mm/ f4.5L Specifications 规格 |
| Lens Design光学结构（片／组） |
6 elements/5 groups |
| Angle of View视角 |
34˚ |
| Minimum Aperture最小光圈 |
32 |
| 35mm Equivalent相等于35mm片幅 |
71mm |
| Minimum Focus最近对焦距离 |
5' 10.9" / 1.8m |
| Maximum Magnification最高放大倍率 |
0.096X |
| Minimum Image Area最小影像范围 |
22.9 x 28.4" / 581 x 721mm |
| Filter Diameter滤镜直径 |
67mm |
| Lens Hood (supplied with lens)遮光罩 |
Bayonet插力式 |
| Dimensions体积(L x W) |
3.8 x 2.8" / 96 x 70mm |
| Weight重量 |
1 lb. 2 oz. / 520 g. |
N 210mm/ f8L 远摄镜头(附光学观景器) CODE NO.532250
约等于105mm(135相机)
 The Mamiya 210mm/ f8L  lens is a compact 17 ounce, 4.9 inch lens designed to meet the needs of Mamiya 7II owners who like travel, backpacking and desire a lightweight telephoto to capture distant landscapes. This lens in not coupled to the rangefinder, and must be set for the estimated distance of the subject.
Applications include distant landscape and aerial photography.
Equivalent to 105mm in 35mm format.
| Telephoto 210mm/ f8L Specifications 规格 |
| Lens Design光学结构（片／组） |
7 elements/5 groups |
| Angle of View视角 |
24˚ |
| Minimum Aperture最小光圈 |
32 |
| 35mm Equivalent相等于35mm片幅 |
105mm |
| Minimum Focus最近对焦距离 |
23ft. / 7m |
| Maximum Magnification最高放大倍率 |
0.032X |
| Minimum Image Area最小影像范围 |
5.75 x 7.13' / 175 x 217.2cm |
| Filter Diameter滤镜直径 |
58mm |
| Lens Hood (supplied with lens)遮光罩 |
Bayonet插力式 |
| Dimensions体积(L x W) |
4.9 x 2.8" / 125 x 70mm |
| Weight重量 |
16.9oz. / 480g |
| Optical View-Finder FV704 (supplied with lens)独立观景器 |
With parallax correction and diopter adjustment |
| Type种类 |
Albada viewfinder |
| Field of View视野率 |
80% at infinity |
| Magnification放大倍率 |
0.89x |
| Parallax Compensation视差补偿 |
Manual adjustment on finder手动调较 |
| Diopter Adjusting屈光度补偿 |
Rotary type 0.8 +/- 2 diopter |
| Dimensions体积 |
1.8 x 2.1 x 2.3" / 45.2 x 53.6 x 58.6mm |
| Weight重量 |
4.1oz. / 115g | |

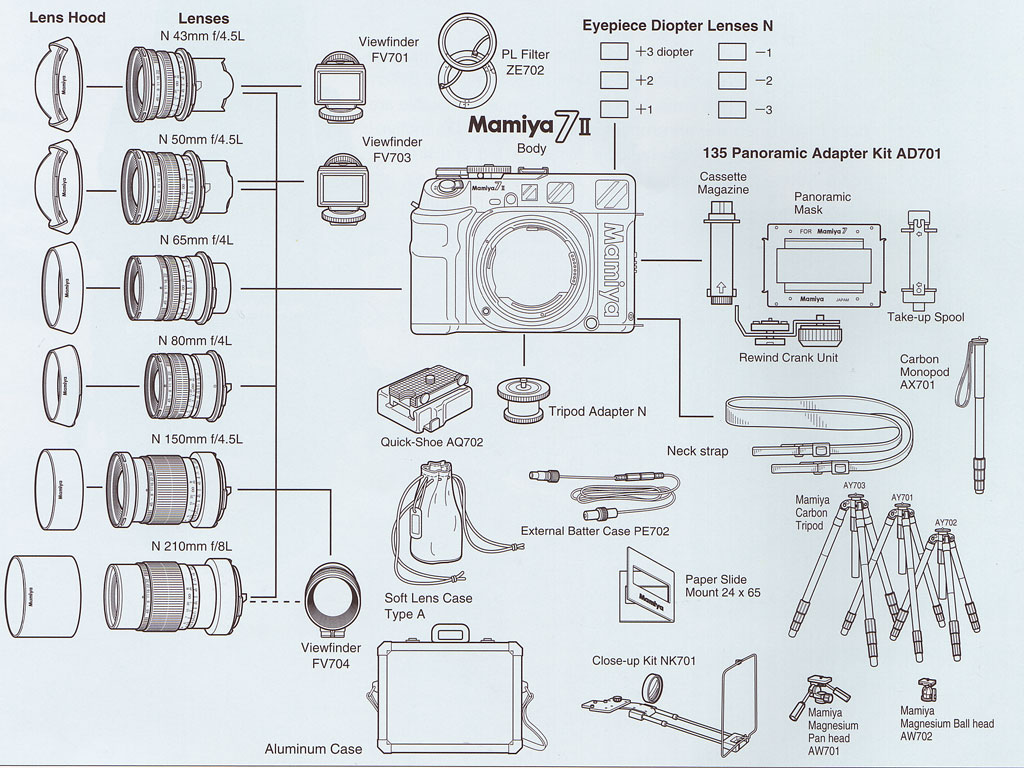

Accessories配件:
135 Panoramic Adapter Kit AD701 １３５菲菻全景转接器 (24mm x 65mm)
  CODE NO.534220
The Mamiya 7II is designed to take 35mm film cassettes when the optional panoramic kit is inserted. It yields spectacular 24x65mm images, an aspect ratio of 1:2.7. The optional 35mm panoramic kit consists of a panoramic film mask; a cassette magazine, film take-up spool and rewind crank set. It's simple design provides quick installation and use.
Close-up Adapter Kit NK701 近摄器
 CODE NO.534070
The Mamiya 7 Close-up Kit allows the 80mm f4 lens to focus at a fixed distance of approximately eleven inches from the lens for a magnification ratio of 0.32x life size. The Kit includes a two element screw-in close-up lens, folding composition frame, and case.
PL Filter ZE702 w Adapter Ring 偏光镜
  CODE NO.534080
Quick-shoe AQ702 (6MF, M7, M7II) 专用三脚架快速板
 CODE NO. 804071
The quick shoe is custom designed for the Mamiya 7, and allows fast attachment and release from a tripod head without interfering with the controls on the bottom of the camera body. Attaches to standard 1/4" tripod sockets and incorporates an anti-twist plate.
External Battery Case PE702 外置电池箱
 CODE NO.804052
Viewfinder FV704 独立观境器(N 150mm/210mm)
 CODE NO.534540
Eyepiece Diopter Lenses 矫视片
+3, +2, +1, -1, -2, -3
Specifications and features are subject to change without notice. |
