產品詳細資料

PRODUCT ID

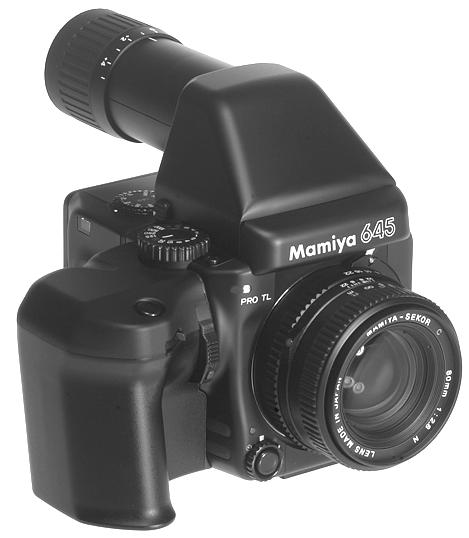

645SV PACK II (停产)(discontinue)

(停产)(discontinue)

-6x4.5片幅相机, 有用多种镜头, 可配自动手柄卷片器, 使拍摄更灵活, 户外户内两皆宜.

注:如欲配置Mamiya数码後背使用,请选购Mamiya 645AFD系列,645DF,RB67和RZ67proIID相机,其它型号全不適用。

Specificiation:

Type 6x4.5cm format
Focal Plane Shutter
Optional Leaf Shutter Lenses
Single Lens Reflex
Instant Return Mirror
TTL/OTF Flash Automation (645 Pro TL)
Format 6x4.5cm, 35mm, Polaroid
Interchangeable Film Magazines Auto-indexing Film Speed Dial
Dark Slide Pocket
Dark Slide Safety Interlock
Lens Mount Bayonet
Lenses System of over 20 interchangeable Lenses
Shutter Electronically timed speeds
4 seconds to 1/1000 second
Self canceling self timer
B and T setting
Mirror up-operation
AE and AEL settings
Shutter Release Electromagnetic release accepts standard mechanical cable release with adapter, electronic release cable, radio or infra-red remote control
Film Advance Single Action advance with folding rapid wind crank or optional motor winders
Multiple Exposure Single action multi switch
Focusing Precision Helicoid
Viewfinder Choose from waist level, AE Matrix Prism Finder, Non-metering PRO Prism Finder, SV AE Reflex Finder, SVX non-metering reflex finder
Field of View 94%
Viewfinder Status Indicators Battery check
Dark slide position
TTL Flash Ready Light
Focusing Screen Type E split/microprism combination (Standard)
Five additional interchangeable screens
Power One 6V silver oxide, 6V alkaline, 6V lithium. PX28, 4SR44 or 4LR44
Dimensions 124x106x158mm (4.9x4.2x6.2")
Weight 1345g. (3.0 lbs.) w/waist level finder, 80mm f/2.8 N lens, 120 Magazine

_________________________________________________________

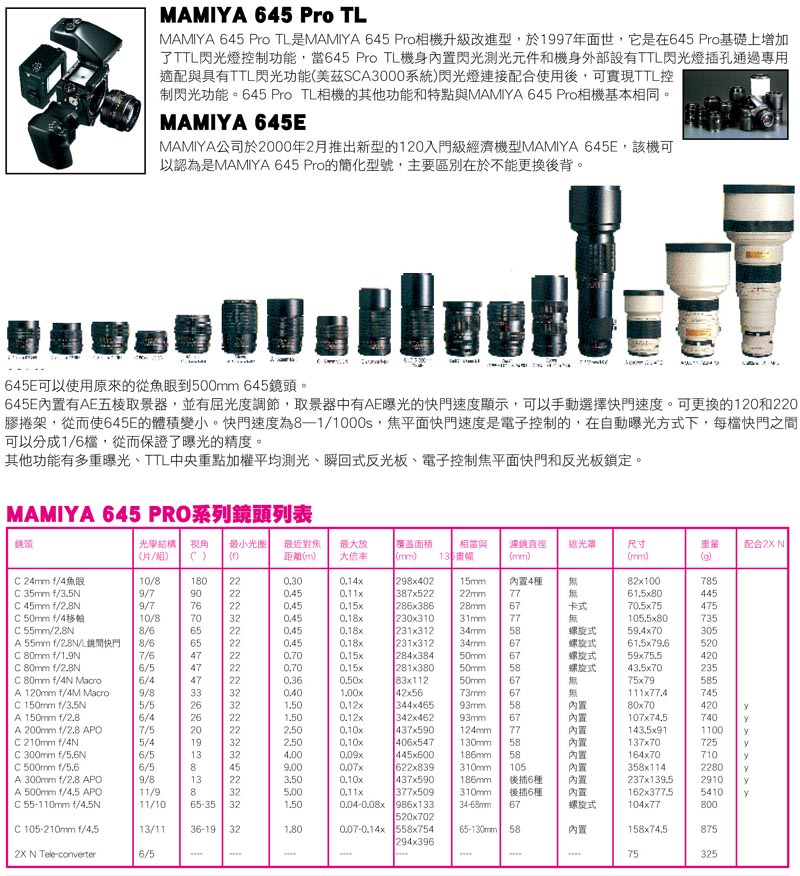

Lens Specifications 镜头规格

C 45mm f/2.8 N 广角镜 Specifications   CODE NO.302112

The C 45mm f/2.8 N is an extreme wide angle lens with a 76˚ angle of view.

Applications include architecture, landscape, scenic travel and fashion photography.

约等于135全画幅相机的 28mm镜头

 Equivalent to 28mm in 35mm format.

Optical Construction 9 elements/7 groups
Angle of View 76˚
Minimum Aperture 22
Diaphragm Automatic
Minimum Focusing Distance 1' 5.7" / 45cm
Maximum Magnification Ratio 0.15X
Area Covered 9.1 x 12.2" / 286 x 386mm
Equivalent 35mm Focal Length 28mm
Filter Size 67mm
Lens Hood Slip-on
Dimensions (L x W) 4.2 x 3.2" / 70.5 x 75mm
Weight 1 lb. 10 oz. / 475 g.



C 50mm f/4 Shift w Cable Release Adapter RC401 广角镜 Specifications   CODE NO.307129

The C 50mm f/4 Shift is a special application lens for perspective control. It features a unique wide field coverage and perspective

control shift mechanism in a rotating mount, allowing the photographer to maintain proper linear perspective, identical to PC shift

lenses for 35mm cameras.

Applications include precise perspective control for architectural or industrial rendering or table top photography.

约等于135全画幅相机的 31mm镜头

Equivalent to 31mm in 35mm format.

Optical Construction 10 elements/8 groups
Angle of View 70˚
Minimum Aperture 32
Diaphragm Manual
Minimum Focusing Distance 1' 5.7" / 45cm
Maximum Shift 16mm vertically, 13mm horizontally
Shift Direction Can be shifted in any direction by rotating the lens 360 degrees around the optical axis. Click-stops are provided at 30-degree intervals.
Maximum Shift Indication The maximum shift for each 30 degree interval is indicated by color-coded numerals and Shift Scale.
Image Circle Diameter 97mm
Maximum Magnification Ratio 0.18X
Area Covered 9.1 x 12.2" / 230 x 310mm
Equivalent 35mm Focal Length 31mm
Filter Size 77mm
Lens Hood None required
Dimensions (L x W) 4.2 x 3.2" / 105.5 x 80mm
Weight 1 lb. 10 oz. / 735 g.



C 55mm f/2.8 N 广角镜 Specifications   CODE NO.302125

The C 55mm f/2.8 N is the most popular wide angle focal length in 645 format. It renders natural perspective with increased depth of field

and angular coverage and provides the least amount of distortion of the wide angle range for subjects at the edges of the frame.

Applications include group portraits, wedding photography, and general purpose wide angle photography.

约等于135全画幅相机的 34mm镜头

Equivalent to 34mm in 35mm format.

Optical Construction 8 elements/6 groups
Angle of View 65˚
Minimum Aperture 22
Diaphragm Automatic
Minimum Focusing Distance 1' 5.7" / 45cm
Maximum Magnification Ratio 0.18X
Area Covered 9.1 x 1' 0.3" / 231 x 312mm
Equivalent 35mm Focal Length 34mm
Filter Size 58mm
Lens Hood Screw-in
Dimensions (L x W) 2.3 x 2.8" / 59.4 x 70mm
Weight 11 oz. / 305 g.



A 55mm f/2.8 N/L with Leaf Shutter 广角镜 Specifications   CODE NO.Y02250

The A 55mm f/2.8 N/L is optically identical to the 55mm f/2.8 lens, with the addition of an internal leaf shutter, for flash synchronization up

to 1/500 second for outdoor fill-flash. It features manual operation or motorized leaf shutter cocking with the 645 Power Drive Grip WG401.

The 55mm f/2.8 N/L is the most popular wide angle focal length in 645 format. It renders natural perspective with increased depth of field

and angular coverage and provides the least amount of distortion of the wide angle range for subjects at the edges of the frame.

Applications include group portraits, wedding photography, and general purpose wide angle photography. Compatible with TTL/OTF flash

operation using Pro-TL.


约等于135全画幅相机的 34mm镜头
Equivalent to 34mm in 35mm format.

Optical Construction 8 elements/6 groups
Angle of View 65˚
Minimum Aperture 22
Diaphragm Automatic
Shutter Seiko #0 mechanical shutter 1/30~1/500 sec.,
F (Focal plane shutter), x synchro-contact
Shutter Cocking Automatic with optional Power Drive Grip WG401 (Cat. # 211-431) or manual shutter cocking
Minimum Focusing Distance 1' 5.7" / 45cm
Maximum Magnification Ratio 0.18X
Area Covered 9.1 x 1' 0.3" / 231 x 312mm
Equivalent 35mm Focal Length 34mm
Filter Size 67mm
Lens Hood Screw-in
Dimensions (L x W) 2.4 x 3.3" / 61.5 x 79.6mm
Weight 1 lb. 2 oz. / 520 g.

C 80mm f/1.9 N Specifications  (discontinued)(停产) CODE NO.301007

The C 80mm f/1.9 N is the fastest medium format lens available in 645 format. It is ideal for available light photography.

Applications include reportage, church interiors, or fashion photography requiring minimal depth of field effects.

 约等于135全画幅相机的 50mm镜头

Equivalent to 50mm in 35mm format.

Optical Construction 7 elements/6 groups
Angle of View 47˚
Minimum Aperture 22
Diaphragm Automatic
Minimum Focusing Distance 2' 3.6" / 70cm
Maximum Magnification Ratio 0.15X
Area Covered 11.2 x 15.1" / 284 x 384mm
Equivalent 35mm Focal Length 50mm
Filter Size 67mm
Lens Hood Screw-in
Dimensions (L x W) 2.3 x 3.0" / 59 x 75.5mm
Weight 15 oz. / 420 g.



C 80mm f/2.8 N 标准镜 Specifications   CODE NO.301015

The C 80mm f/2.8 N is a compact, lightweight standard focal length lens.

Applications include general purpose photography from landscapes to

portraits and close-up photography with bellows or extension tubes.

约等于135全画幅相机的 50mm镜头

Equivalent to 50mm in 35mm format.

Optical Construction 6 elements/5 groups
Angle of View 47˚
Minimum Aperture 22
Diaphragm Automatic
Minimum Focusing Distance 2' 3.6" / 70cm
Maximum Magnification Ratio 0.15X
Area Covered 11.1 x 15.0" / 281 x 380mm
Equivalent 35mm Focal Length 50mm
Filter Size 58mm
Lens Hood Screw-in
Dimensions (L x W) 1.7 x 2.8" / 43.5 x 70mm
Weight 8 oz. / 220 g.



C 80mm f/4 N 微距镜 Macro Specifications   CODE NO.302515

The C 80mm f/4 N Macro features outstanding resolution, and flat field correction required for copying flat artwork with edge to edge sharpness.

The built-in helicoid extension allows focusing from infinity to 1/2 life size magnification. With optional Macro-spacer N, the 80mm f/4 Macro focuses

from 1/2 to 1:1 life size magnification. Applications include copywork, macro and close-up photography of all objects from product photography to

flowers. Fashion and beauty photographers find the 80mm f/4 Macro particularly useful for a variety of subject close-ups and normal shots.

An extremely versatile lens, the 80mm f/4 macro can also operate as an excellent normal focal length lens focusing to infinity for portraits,

lanscapes and general purpose photography. With the Auto Bellows N, magnifications to 3X life size are possible.

约等于135全画幅相机的 50mm镜头

Optical Construction 6 elements/4 groups
Angle of View 47˚
Minimum Aperture 22
Diaphragm Automatic
Minimum Focusing Distance 14" / 36cm
Maximum Magnification Ratio 0.50X
Area Covered 3.3 x 4.4" / 83 x 112mm
Equivalent 35mm Focal Length 50mm
Filter Size 67mm
Lens Hood None required
Dimensions (L x W) 3 x 3.1" / 75 x 79mm
Weight 1 lb. 5 oz. / 585 g.



A 120mm f/4 微距镜 Macrospan Specifications   CODE NO.302530

The A 120mm f/4 macro is the first of its kind for medium format optics, featuring continuous focusing from infinity to1:1 life size. Its unique double helicoid and floating element design assure optimum performance at all working distances.
Applications include any subject from landscapes and wildlife to full length portraits, to head and shoulders shots to close-up beauty, product shots or macro, scientific and industrial applications.

约等于135全画幅相机的 73mm镜头

Equivalent to 73mm in 35mm format

Optical Construction 9 elements/8 groups
Angle of View 33˚
Minimum Aperture f/32
Diaphragm Automatic
Minimum Focusing Distance 1.32 feet" / 0.402m
Maximum Magnification Ratio 1:1
Minimum Area Covered 1.6 x 2.2" / 41.5 x 56mm
Equivalent 35mm Focal Length 73mm
Filter Size 67mm
Lens Hood Built-in (recessed barrel)
Dimensions (L x W) 4.3 x 3" / 111 x 77.4mm
Weight 1 lb. 6 oz. / 745 g.



A 150mm f/2.8 远摄镜 Specifications   CODE NO.Y02330

The A 150mm f/2.8 is a high speed telephoto utilizing Mamiya's ultra-low dispersion glass for superior performance at all apertures.

It is ideally matched for use with the 2X Tele-Extender for performance identical to the 300mm f/5.6 lens. In addition, many fashion

and sports photographers find it an excellent companion to the Mamiya 300mm f/2.8 APO.

Applications include portraiture, fashion, beauty, sports, landscape and existing light telephotography.

约等于135全画幅相机的 93mm镜头

Equivalent to 93mm in 35mm format.

Optical Construction 6 elements/4 groups
Angle of View 26˚
Minimum Aperture 22
Diaphragm Automatic
Minimum Focusing Distance 4' 11.1" / 150cm
Maximum Magnification Ratio 0.12X
Area Covered 13.6 x 18.2" / 342 x 462mm
Equivalent 35mm Focal Length 93mm
Filter Size 67mm
Lens Hood Built-in
Dimensions (L x W) 3.2 x 2.9" x 107 x 74.5mm
Weight 1 lb. 10 oz. / 740 g.



150mm f/3.8 N/L with Leaf Shutter 远摄镜Specifications

The 150mm f/3.8 N/L is optically identical to the 150mm f/3.5 lens, with the addition of an internal leaf shutter, for flash

synchronization up to 1/500 second for outdoor fill-flash. The internal leaf shutter reduces the maximum aperture slightly

to f/3.8. It features manual operation or motorized leaf shutter cocking with the 645 Power Drive Grip WG401.

The 150mm f/3.8 N/L lens is a compact telephoto suited for a variety of uses. Applications include portraiture, fashion,

beauty, sports and landscape telephotography. Compatible with TTL/OTF operation using Pro-TL .

约等于135全画幅相机的 93mm镜头

Equivalent to 93mm in 35mm format.

Optical Construction 5 elements/5 groups
Angle of View 26˚
Minimum Aperture 32
Diaphragm Automatic
Shutter Seiko #0 mechanical shutter 1/30~1/500 sec.,
F (Focal plane shutter), x synchro-contact
Shutter Cocking Automatic or manual shutter cocking
Minimum Focusing Distance 4' 11.1" / 150cm
Maximum Magnification Ratio 0.12X
Area Covered 344 x 465mm
Equivalent 35mm Focal Length 93mm
Filter Size 67mm
Lens Hood Screw-in
Dimensions (L x W) 3.2 x 3.1" / 82 x 78.9mm
Weight 1 lb. 6 oz. / 620 g.



200mm f/2.8 APO 低色散远摄镜 Specifications   CODE NO.302228

The 200mm f/2.8 APO is a high speed, hand-holdable, compact telephoto for existing light shooting, comfortable working distance and

incredible Apochromatic performance. It exhibits optimal correction for chromatic abberation even wide open.

To expand the possibilities of the Mamiya 645 Series A 200mm f/2.8 APO, the Mamiya 645 Series 2X Extender N-2 doubles the effective

focal length to 400mm f/5.6.

Applications include photojournalism, sports, wildlife, landscape, fashion, portrait and beauty applications.

约等于135全画幅相机的 124mm镜头

Equivalent to 124mm in 35mm format.

Optical Construction 7 elements/5 groups
Angle of View 20˚
Minimum Aperture f/22
Diaphragm Automatic
Minimum Focusing Distance 8.2 feet / 2.5m
Maximum Magnification Ratio 0.10X
Minimum Area Covered 17 x 23" / 437x590mm
Equivalent Focal Length 124mm
Filter Size 77mm
Lens Hood Built-in (extension hood included)
Dimensions (L x W) 5.6 x 3.5" / 143.5 x 91mm
Weight 2.4 lbs. / 1100 g.



C 210mm f/4 N  远摄镜 Specifications  CODE NO.302235

The C 210mm f/4 N is a compact mid range telephoto lens filling the gap between

150mm and 300mm focal lengths. It can be combined with the 2X Tele-Extender

for an effective 420mm f/8 focal length.

Applications include portraiture, fashion, landscape telephotography and sports.

约等于135全画幅相机的 130mm镜头

Equivalent to 130mm in 35mm format.

Optical Construction 5 elements/4 groups
Angle of View 19˚
Minimum Aperture 32
Diaphragm Automatic
Minimum Focusing Distance 8' 2.5" / 250cm
Maximum Magnification Ratio 0.10X
Area Covered 16.0 x 21.6" / 406 x 547mm
Equivalent 35mm Focal Length 130mm
Filter Size 58mm
Lens Hood Built-in
Dimensions (L x W) 5.4 x 2.8" / 137 x 70mm
Weight 1 lb. 9 oz. / 715 g.



C ULD 300mm f/5.6 N 远摄镜 Specifications   CODE NO.302245

The C ULD 300mm f/5.6 N is an unusually compact long telephoto, maintaining a 58mm filter size common to most Mamiya 645 lenses.

The 300 f/5.6 performs extremely well at all apertures due to the use of Mamiya's ultra-low dispersion glass to eliminate chromatic

abberation. It can be combined with the 2X Tele-Extender for use as a 600mm f/11 lens.

Applications include telephotography, landscape, wildlife, sports and fashion photography, where compression effect is desired.

约等于135全画幅相机的 186mm镜头

Equivalent to 186mm in 35mm format.

Optical Construction 6 elements/5 groups
Angle of View 13˚
Minimum Aperture 32
Diaphragm Automatic
Minimum Focusing Distance 13' 1.6" / 400cm
Maximum Magnification Ratio 0.09X
Area Covered 17.5 x 23.6" / 445 x 600mm
Equivalent 35mm Focal Length 186mm
Filter Size 58mm
Lens Hood Built-in
Dimensions (L x W) 6.5 x 2.8" / 164 x 70mm
Weight 1 lb. 9 oz. / 710 g.



A 300mm f/2.8 APO 低色散远摄镜 Specifications   CODE NO.Y02380

The A 300mm f/2.8 APO is an astounding achievement in medium format optics, using Mamiya's ultra-low dispersion glass and computer aided

design to produce the world's only medium format 300mm f/2.8 lens. It exhibits complete correction of chromatic abberation, for optimal

performance even wide open. It is designed for use with the 2X Tele-Extender for use as a 600mm f/5.6 lens. The 300 APO also features a

rotating tripod mount, collapsible lens hood and hood extension, and a drop-in filter set.

Applications include available light photography for reportage, wildlife, sports, fashion and beauty.

约等于135全画幅相机的 186mm镜头

Equivalent to 186mm in 35mm format.

Optical Construction 9 elements/8 groups
Angle of View 13˚
Minimum Aperture 22
Diaphragm Automatic
Minimum Focusing Distance 11' 5.9" / 350cm
Maximum Magnification Ratio 0.10X
Area Covered 17.2 x 23.2" / 437 x 590mm
Equivalent 35mm Focal Length 186mm
Filter Size Drop-in (6 types)
Lens Hood Built-in, with extra-hood
Dimensions (L x W) 5.5 x 9.3" / 139.5 x 237mm
Weight 5 lbs. 15 oz. / 2,700 g.



C 500mm f/5.6 远摄镜 Specifications   CODE NO.307310

The C 500mm f/5.6 uses ultra-low dispersion glass to give superior resolution in a long telephoto design. It can be matched with the 2X Tele-Extender

for use as a 1000mm f/11 lens. It is relatively portable for its focal length and maximum aperture.

Applications include sports, wildlife, fashion, and telephoto landcsape photography.





约等于135全画幅相机的 310mm镜头

Equivalent to 310mm in 35mm format.

Optical Construction 6 elements/5 groups
Angle of View
Minimum Aperture 45
Diaphragm Automatic
Minimum Focusing Distance 29' 6.6" / 900cm
Maximum Magnification Ratio 0.07X
Area Covered 24.5 x 33.1" / 622 x 839mm
Equivalent 35mm Focal Length 310mm
Filter Size 105mm
Lens Hood Built-in
Dimensions (L x W) 14.1 x 4.5" / 358 x 114mm
Weight 5 lbs. / 2,280 g.



A 500mm f/4.5 APO 低色散远摄镜 Specifications   CODE NO.302330

The A 500mm f/4.5 APO is the "big brother" to Mamiya's ground breaking 300 f/2.8 APO for the 645 Series. Designed with ultra-low dispersion glass,

the 500 APO fully corrects for chromatic abberation, assuring superb sharpness and color reproduction at all apertures. It is designed for use with

the 2X Tele-Extender for use as a 1000mm f/9 lens. The 500 APO also features a rotating tripod mount, collapsible lens hood and hood extension,

and a drop-in filter set.

Applications include sports, wildlife, fashion, and telephoto landscape photography.

约等于135全画幅相机的 310mm镜头

Equivalent to 310mm in 35mm format.

Optical Construction 11 elements/9 groups
Angle of View
Minimum Aperture 32
Diaphragm Automatic
Minimum Focusing Distance 16' 5.0" / 500cm
Maximum Magnification Ratio 0.11X
Area Covered 14.9 x 20.1" / 377 x 509mm
Equivalent 35mm Focal Length 310mm
Filter Size Drop-in (6 types)
Lens Hood Built-in, with extra hood
Dimensions (L x W) 14.9 x 6.4" / 377.5 x 162mm
Weight 11 lbs. 15 oz. / 5,410 g.



C 55-110mm f/4.5 N 变焦镜 Specifications   CODE NO.302420

The 645 Series offers two ideally matched zoom lenses adding total 35mm format handling and flexibility to medium format quality.

The C 55-110 f/4.5 N zoom covers the popular 35-70mm zoom range in 35, whereas the 105-210mm f/4.5 ULD is its perfect match

covering a 68-130 equivalent range. They both offer a separate zoom and focus rings. These lenses make the 645 system ideal for

sports, travel and fast moving portraiture. Optical performance equals prime focal length lenses due to Mamiya's high quality

computer aided design and manufacturing.

Applications cover a wide range of subjects including travel, wildlife, fashion, and landscape photography.

约等于135全画幅相机的 34-68mm镜头

Equivalent to 34-68mm in 35mm format.

Optical Construction 11 elements/10 groups
Angle of View 65˚ - 35˚
Minimum Aperture 32
Diaphragm Automatic
Minimum Focusing Distance 4' 11.1" / 150cm
Maximum Magnification Ratio 0.04 - 0.08X
Area Covered Wide Angle 38.8 x 52.4" / 986 x 1331mm ~ Telephoto 20.5 x 27.7" / 520 x 702mm
Equivalent 35mm Focal Length 34 ~ 68mm
Filter Size 67mm
Lens Hood Screw-in
Dimensions (L x W) 4.1 x 3.0" / 104 x 77mm
Weight 1 lb. 12 oz. / 800 g.

C ULD 105-210mm f/4.5 变焦镜 Specifications    CODE NO.302411

The 645 Series offers two ideally matched zoom lenses adding total 35mm format handling and flexibility to medium format quality.

The C ULD 55-110 f/4.5 zoom covers the popular 35-70mm zoom range in 35, whereas the 105-210mm f/4.5 ULD is its perfect

match covering a 65-130mm equivalent range. They both offer a separate zoom and focus rings. These lenses make the 645 system

ideal for sports, travel and fast moving portraiture. Optical performance equals prime focal length lenses due to Mamiya's high quality

computer aided design and manufacturing.

Applications cover a wide range of subjects including travel, wildlife, fashion, and landscape photography.

约等于135全画幅相机的 65-130mm镜头

Equivalent to 65-130mm in 35mm format.

Optical Construction 13 elements/11 groups
Angle of View 36˚  - 19˚
Minimum Aperture 32
Diaphragm Automatic
Minimum Focusing Distance 5' 10.9" / 180cm
Maximum Magnification Ratio 0.07 - 0.14X
Area Covered Wide Angle 22.0 x 29.7" / 558 x 754mm ~ Telephoto 11.6 x 15.6" / 294 x 396mm
Equivalent 35mm Focal Length 65 - 130mm
Filter Size 58mm
Lens Hood Built-in
Dimensions (L x W) 6.2 x 2.9" / 158 x 74.5mm
Weight 1 lb. 15 oz. / 875 g.




Remote Control RS401 红外线遥控快门绳


upload images
CODE NO. Y02830

  Consists of Transmitter and camera-mounted Receiver.
Choice of three infrared channels for interference free operation. 30m operating range.
Transmitter uses two AA Alkaline, Receiver one 9 Volt batteries.
Weight: Transmitter: 130g (without batteries)
Receiver: 140g (without batteries)

Electro-Magnetic Cable Release
电子遥控快门绳

Connects to the electronic shutter release socket of the camera.

upload imagesType A : (1米长)Coil Cord, approx. 1m long, weight: 39g  CODE NO. 804810

 Type B: (4米长) Straight and approx. 4m long.
 CODE NO. 804820


Focusing Screens 对焦屏

upload images Type A Matte(A型磨沙): All matte with Fresnel lens, suited for general purpose photography. (Supplied with camera)

CODE NO. 304491



upload images Type A4 Checker(A4型橫直線): Same as Matte, but with perpendicular grid. Pattern ideal as a compositional aid. Grid intersections also useful as reference points for multiple exposures.
CODE NO.304492
upload images Type B Range finder Spot(B型中央圓圈裂像): Same as Matte, but with a vertical central split-image rangefinder wedge added. Matte surface can be used for focusing, but the vertical split-image feature makes focusing easier and more accurate for subjects such as portraits.
CODE NO. 304493
upload images Type C Microprism(C型微稜): Same as Matte, but with central microprism spot added. Provides an alternative Rangefinder Spot screen with same benefit of enhanced focusing precision.

CODE NO.304494

upload images Type E Range finder Sport/Microprism(E型中央圓圈裂像/微稜): Same as Matte, but with a 45˚ split-image rangefinder wedge surrounded by a microprism collar. Highly versatile 3-way focusing (rangefinder, microprism, and matte). Ideal for general purpose photography.

CODE NO. 304495


120 roll film in place inside insert, which is installed in the holder.



120 Magazine 6x4.5 HA401 CODE NO.Y02620


菲菻背
Mamiya Film Magazines permit fast interchange, even in mid-roll and can also be quickly loaded with interchangeable, pre-loadable Roll Film Inserts. Choose from 120, 220, 35mm roll film, or Polaroid Pack Film.

Each Roll Film Magazine incorporates a Film Speed Dial (ISO settings 25 to 6400) which automatically interfaces through the AE Prism Finder with the camera shutter and lens diaphragm to assure correct exposures. Set it when you load the film.

Other desirable Magazine fail-safe features are: Its Dark Slide is locked when Roll Film Magazine is not attached to camera to prevent accidental exposure; The shutter cannot be released when a Magazine is attached to camera, unless Dark Slide is withdrawn; The Magazines cannot be removed from camera unless Dark Slide is inserted.

Convenient, built-in darkslide storage slot. 120 and 220 Magazines accept either 120 or 220 Inserts.

Inserts can be pre-loaded with film, and ready for use in Magazines. It's the economical and efficient way to be prepared for long shooting sessions when fast film changes are required.

120 and 220 Roll Film Inserts are interchangeable in either 120 or 220 Film Magazines. Saves time and money. Supplied with case.

120/220 Roll Film Insert (片匣) for all 645 Series cameras.  CODE NO.304201/304211

Spare case for Roll Film Insert
For 35mm Magazine Only: 35mm Roll Film Insert.
CODE NO.308225

Type 120 Roll Film Magazine 220 Roll Film Magazine 35mm Roll Film Magazine Polaroid Film Pack Holder
Film Type 120 Roll Film 220 Roll Film 35mm Roll Film

Polaroid Pack Film
(100 & 600 Series)

Image Size
on Film
41.5 x 56mm 41.5 x 56mm 24 x 36mm (Full 35mm)
13 x 36mm (Panoramic)
41.5 x 56mm
# of Exposures 15 exposures 30 exposures 24 or 36 (Full 35mm)
24 or 36 (Panoramic)
10 exposures
Weight 18.7 oz., 530 g. 18.7 oz., 530 g. 19.4 oz., 550 g. 18.7 oz., 330 g.


HC401 (135菲菻背) CODE NO.Y02870
For multi-format versatility in one camera system. Accepts all 35mm films and gives you full frame standard 24x36mm images. Supplied with viewing screen with markings for 645, 35mm and 35mm panoramic format and tweezers for convenient screen handling.










Additionally supplied with a panoramic masking slide adapter which enables you to compose 13x36mm images, the standard panoramic format. Rewind crank built-in. For 645 Pro & Super.




HP401(寶麗箂背) CODE NO.Y02690

One of the greatest time and money saving devices available. The Polaroid Film Pack Holder is indispensable for checking exposure, composition and lighting, especially fill flash. Invaluable for instant proofing of images for art directors and clients.
Fully meter coupled with Pro AE Prism Finder. An absolute must in elaborate settings where the shoot cannot be duplicated.

For 645 Pro & Super. Tripod Adapter N2 required when using Polaroid back and camera on a tripod.





规格与性能视实际情况而定,如有任何更改恕不另行通知。

Specifications and features are subject to change without notice.



| About Us | Products | News | User Gallery | Download | Mamiys History | Contact Us |
TEL電話: (852) 23349381    FAX傳真:(852) 27640243 EMAIL : info@sellenhk.com 2007 ©Sellen All Rights Reserved .
