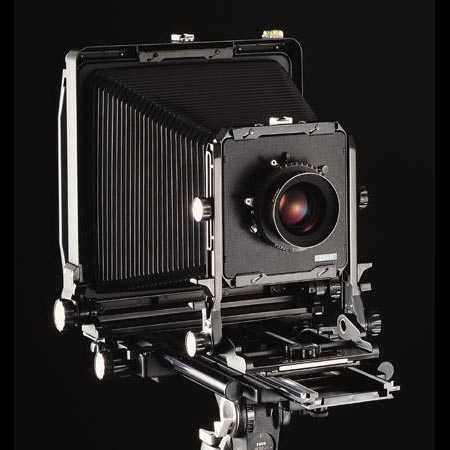

(己附标准镜头板)   TOYO-FIELD 810MII  (8x10 Handy) Item No. 产品号码 No.119 Movement 活动范围 Front Frame 前架 Rear Frame 后架 Rise 上升 44mm ------- Fall 下降 46mm ------- Shift 移动  40 mm +  40 mm ------- Swing 摇摆幅度 360° 6° + 6° Tilt 倾斜度 90° + 15° 90°+ 15° Flange Back 皮腔伸缩范围 88 mm～822 mm Camera Back 相机背 Chemically etched cm grid ground glass, no 3 lens, detachable for vertical/horizontal positions 蚀刻厘米方格对焦屏, 直倒/横倒 Lens Board 镜头板 158 mm x 158 mm Folded Size 最小尺寸 (H)366 x (W)379 x (L)158mm Weight 重量 6.8kg / 15 lbs Minimum Flange with Wide Angle Board  广角镜头板最小伸展距离 48mm Focus 对焦 Fine focus by rack pinion on the back           微调对焦小齿轮安装于背架上 TOYO-Field 810MII Folding Field Camera Features: - Precision all metal folding field 8x10 - Weighs only 15 lbs. - Reducing backs for 5x7 and 4x5 format - Triple extension bed - Front standard reverses for extension - Teflon coated rack and pinion focusing - All metal rubber covered GX control knobs - Independent locks on all movements - Reversible 8x10 back - Wide frame design utilizes 158mm square lens boards and minimizes internal vignetting - Pro black matte finish Technical Specifications 　 Camera Back reversible Manual Rise front only 90mm Manual Shift front only 80mm Swing front/rear 360/12° Base Tilt front & rear 105° Interchangeable bellows Yes Triple Bed Extension with geared back focus built-in Maximum Extension with front reversed 820mm Longest Lens with Standard Bellows 800mm T Shortest Lens with flat Lens Board 100mm Longest lens f/ Recessed LB & WA Bellows recommended for max. movement 90mm Shortest Lens with Rec. LB & WA Bellows 58mm Weight 15 lbs. Folded Dimensions 14.5" x 15" x 6.2" Item No.119 . USA Cat #(180-225). Item TOYO-FIELD 810MII Folding Field Camera TOYO-FIELD 810MII camera includes: - Reversible Back with Easy load Bail Arm - Acid Etched Grid Ground Glass - Pre-drilled #0 Lens Board - Dual Axis Spirit Levels - Ground Glass Protective Cover The Toyo View 810GII & 810MII 8x10 monorail system cameras accept many precision-made modular accessories designed for all Toyo 8x10 folding field and studio monorail cameras. The accessory system contains many professional tools to solve specific challenges and adds to the 810GII's and 810MII'sversatility and convenient operation. In addition, the 810GII & 810MIIaccept a wide variety of state-of-the-art digital backs for electronic imaging. Carry Case Item No.  USA# Item/Description 8920 (180-885) 810GIIAluminum Case, 22.5" x 13" x 22", 22 lbs. 8920 (180-883) 810MII Aluminum Case, 17" x 17" x 8",12 lbs. Spirit Level Dual Axis Spirit Level, replacement. Item No.8071 .USA #(180-713). Protective Back Cover 8x10 protective cover, replacement - covers ground glass. USA #180-731. Lens Boards TOYO Lens Boards are die cast with holes for rigidity and precision flatness. Please consult the manufacturer of your lens for exact details on required lens board size before ordering. Listings below applies for most brand lenses. Item No.  USA # Item/Description 10101 (180-601) #0 flat, 158mm square, for 90mm - 150mm lenses    - (180-599) #1 flat, for 180mm - 210mm lenses    - (180-600) #3 flat, for 240mm - 800mm lenses 11291 (180-602) #0 recessed, 158mm square, for 47mm - 90mm wide angle lenses    - (180-619) #1 recessed, for 90mm-155mm wide angle lenses    - (180-620) #3 recessed, for 90mm-155mm wide angle lenses Mounting Wrench Lens Mounting Wrench for #0, #1 shutters. Item No.4511 . USA #(180-625). Lens Board Adapters Use TOYO Lens Board Adapters to attach lenses mounted on other brand or size lens boards to TOYO cameras. TOYO monorail view cameras use a 158mmsquare lens board size. TOYO-FIELD 45A and 23G use 110mm square. Item No.  USA # Item/Description 1052 (180-631) TOYO45A to TOYO, 158mm Flat lens board adapter 1057 (180-632) TOYO45A to TOYO, 158mm Recessed for 45-90mm lenses 1051 (180-628) Linhof to TOYO 158mm, flat lens board adapter 1056 (180-627) Linhof to TOYO 158mm, recessed for 45-90mm lenses 117 (180-638) Linhof Lens Board, flat undrilled 8054 (180-607) Sinar to TOYO 158mm flat lens board adapter 1050 (180-605) Graphic to TOYO 158mm flat lens board adapter 5081 (180-637) Graphic Lens Board #0 Compendium Lens Hoods Attaches to front camera standard. Flexible and adjustable bellows type lens hoods for all lenses from 65mm up. Swing Up Mount allows easy access to lens controls. Use optional extension rods with item no.8060(180-626) Pro Hood for large lenses. Item No.  USA # Item/Description 8060 (180-626) Pro Compendium Hood, includes 3", 4", 5" gel filter holders 8062 (180-608) Extension Rods for above 8063 (180-610) Spare Gelatin Filter Holders set of 3", 4", 5" for above 8061 (180-624) Compendium Lens Hood. Does not have filter slots. Tripod Mounting Blocks & Plates TOYO tripod mounting blocks feature quick clamp fittings for easy removal and attachment of cameras to tripod. For extreme extensions using the long bellows or by adding an intermediate frame and 4x5 bellows with the 810GII,we recommend using an additional item no. 8208 #(180-724) tripod mounting block and double camera arm which mounts on studio stand or tripod with 3/8" thread. The arm can also be used with other types of cameras and long lenses. Top has two 3/8" platforms. Item No.  USA # Item/Description 8208 (180-724) 70mmTripod Mount Block. Standard on TOYO 810MII. Features 3/8" socket. 11931 (180-749) 810MII Anti-Twist Tripod Mount Plate 3812 (180-935) Double Camera Mount Arm Interchangeable Bellows TOYO G/GX bellows have a wide internal frame to minimize internal vignettng when using extreme movements. Item No.  USA # Item/Description 11602 (180-708) 8x10 Standard Bellows, 700mm 8221 (180-709) 8x10 Wide Angle Bag Bellows 8222 (180-710) 8x10 Long Bellows, 1200mm Monorails TOYO-VIEW modular 39mm diameter monorails are used with all TOYO-VIEW cameras from 2x3 to 8x10 format. G/GX Basic monorails have 2 female ends and accept extensions on both sides. The special end caps act as a tool to attach and detach G/GX extension monorails. See instructions provided with them for use. Item No.  USA # Item/Description 10106 (180-740) 250mmGX Basic, (black) includes 2- G/GX end caps    - (101-8007*) G/GX End Cap Tool to attach and remove GX rails *Available through Toyo repair parts department. Select Ask Toyo to order. G/GX Extension monorails have one end cap with a thread in it and may be continuously added for extreme extension. They require the G/GX Basic rail special end caps for attachment. Item No.  USA # Item/Description 10115 (180-742) 150mmG/GX Extension (black) accepts extensions 10107 (180-741) 250mmG/GX Extension (black) accepts extensions GB Extension monorails have one fixed end cap and one threaded end and maybe added on either side of a Basic rail or at the end of a G/GX Extension rail. Item No.  USA # Item/Description 8313 (180-746) 150mm GB Extension, (black) 8311 (180-744) 250mm GB Extension, (black) 8312 (180-745) 500mm GB Extension, (black) Format Reducing Back Accessories To convert TOYO 810GII & 810MII to 5x7 or 4x5 format: Add reducing board and ground glass back. When used with reducing adapters, the item no.8705 #(180-820) will not provide clearance for a Polaroid® 545 4x5 holder. Item No.  USA # Item/Description 1830 (180-825) Reducing Adapter 8x10 to 4x5 requires 4x5 back 8005 (180-805) 4x5 360° Revolving Back required for above 8705 (180-820) 4x5 Vertical/horizontal Back, non Revolving 4x5 Back 1832 (180-826) Reducing Adapter 8x10 to 5x7 requires 5x7 back 8105 (180-821) 5x7 Vertical/horizontal Back, required for above Frames & Bellows For Conversion 810GII to 57GII 810GII front frame is identical to 5x7 and 4x5 GII models. By adding bellows, rear standard and back, you can convert the 810GII to other sizes. Combine front frame, monorails and mounting block of the 810GII with accessories.   Item No.  USA # Item/Description 8404 (180-859) 57GIIRear Frame 8105 (180-821) 5x7 Vertical/horizontal Back with ground glass & Fresnel 8102 (180-705) 5x7Standard Bellows 500mm 8121 (180-706) 5x7Wide Angle Bag Bellows 8122 (180-707) 5x7Long Bellows 750mm 1232 (180-823) Reducing Adapter 5x7 to 4x5. Requires 4x5 back. Replacement Frames & Back   Item No.  USA # Item/Description 8303 (180-857) GII Front Frame, replacement for 4x5, 5x7, 8x10 8504 (180-860) 810GIIRear Frame, replacement 8205 (180-824) 8x10Vertical/horizontal Back, replacement 810GII/810MII 8081 (180-831) Intermediate Standard Frame Intermediate Standard Frame is used to connect two bellows in between the front and rear standard of a TOYO-VIEW camera. It has manual tilt / swing / shift / rise movements for bellows adjustment. Ground Glass Focusing Screens Item No.  USA # Item/Description 1815 (180-817) 8x10Acid-etched Grid Ground Glass 219 (180-815) 5x7Acid-etched Grid Ground Glass 8015 (180-814) 4x5Acid-etched Grid Ground Glass. Standard on all TOYO 4x5 cameras. Toyo Fresnel Lenses TOYO does not manufacture an 8x10 fresnel lens. Contact your dealer for other manufacturers such as Beattie. Item No.  USA # Item/Description 212 (180-818) TOYO Fresnel Lens 4x5 all Toyo 4x5 except 45C/D 213 (180-816) TOYO Fresnel Lens 5x7 Focusing Hoods Item No.  USA# Item/Description 8226 (180-813) 8x10Binocular Reflex Hood makes image right side up 2206 (180-822) 5x7Folding Focusing Hood TOYO 4x5 focusing hoods have swing-away frames and attach to all TOYO-VIEW and TOYO-FIELD 4x5 cameras, as well as TOYO 8x10 cameras fitted with a reducing adapter. The swing-away frame enables fast access to the entire ground glass for critical viewing with any loupe. 4x5 Folding Focusing Hood Fits all TOYO 4x5. Cuts extraneous light and acts as a protective cover for the ground glass. Item No.2006 . USA #(180-808). 4x5 Flexible Monocular Hood w/ 1.5x eyepiece Cuts out all extraneous light and has a built-in 1.5x eye piece. Item No.1024 . USA #(180-809). Binocular Reflex Hood Reverses image for right side up viewing. Includes vertical/horizontal frame,1.5x binocular eyepiece and adjustable mirror angle.                      Item No.1026 . USA #(180-812). Balloon Focusing Hood Compact and folding Balloon Focusing Hood provides easy access and viewing. Item No.1425 . USA #(180-841). Focusing Magnifier TOYO 3.6x Ground Glass Focusing Magnifier with neck strap & built-in Rubber Eyepiece & ground glass guard. The Toyo 3.6x focusing magnifiers placed directly on the ground glass for critical focusing. The long tubular design offers a comfortable distance for viewing and has a rubber base to protect the ground glass.                      USA #180-301. Focusing Cloth TOYO - Pro Focusing Cloth. The traditional solution to viewing the ground glass image. 36x48" washable black polyester cloth has white side for reflecting heat while shading the camera. USA #180-302. 4x5" & 8x10" Precision Cut Film Holders Item No.  USA # Item/Description 10141 (180-903) Twin Pack TOYO 4x5" Dbl. Cut Film Holder for any 4x5 10142 (180-910) 4x5" replacement dark slide for 180-903 1841 (180-908) TOYO 8x10"Double Cut Film Holder for any 8x10 1840 (180-911) 8x10" replacement dark slide for 180-908 Precision 120 Roll Film Holders TOYO 4x5 backs also allow use of these holders without the removal of the ground glass. Film travels across back without curving for plane for superb film flatness. TOYO 180-725 & 180-726 120 roll film holders have a 4x5graflock mounting plate to fit any 4x5 camera with removable graflock ground glass backs. Item No.  USA # Item/Description 8031 (180-725) TOYO67 / 45 120 Roll Film Holder 6x7cm For any 4x5 camera 8033 (180-726) TOYO69 / 45 120 Roll Film Holder 6x9cm For any 4x5 camera Calculating Extension Required For Close-up Photography In order to calculate the total amount of bellows and monorail extension needed for close-up photography, use this formula: R x F + F = EX R (reproduction ratio) F (focal length in mm) EX (extension in mm) Let us say you want to photograph at life-size, or 1:1, using a 300mm lens. The amount of extension needed would be: 1 x 300 + 300 = 600mm
