產品詳細資料

PRODUCT ID

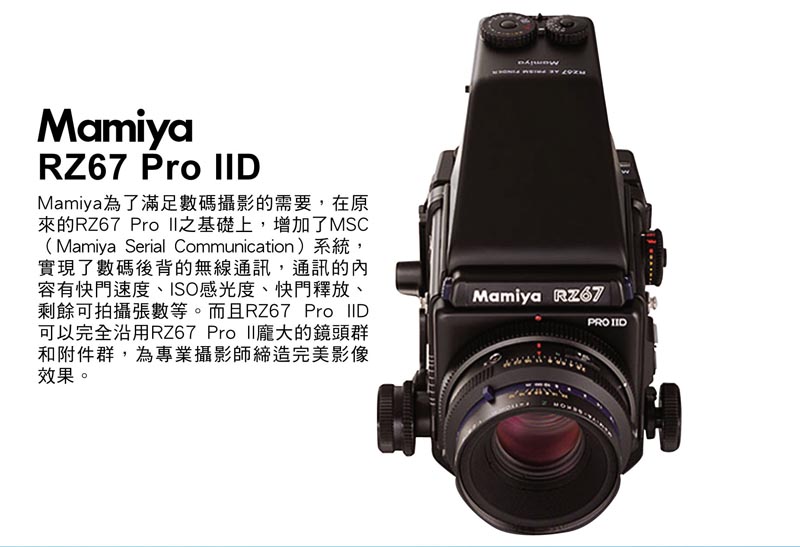

RZ67 PRO IID
(可用DM/M/ZD系列数码背)

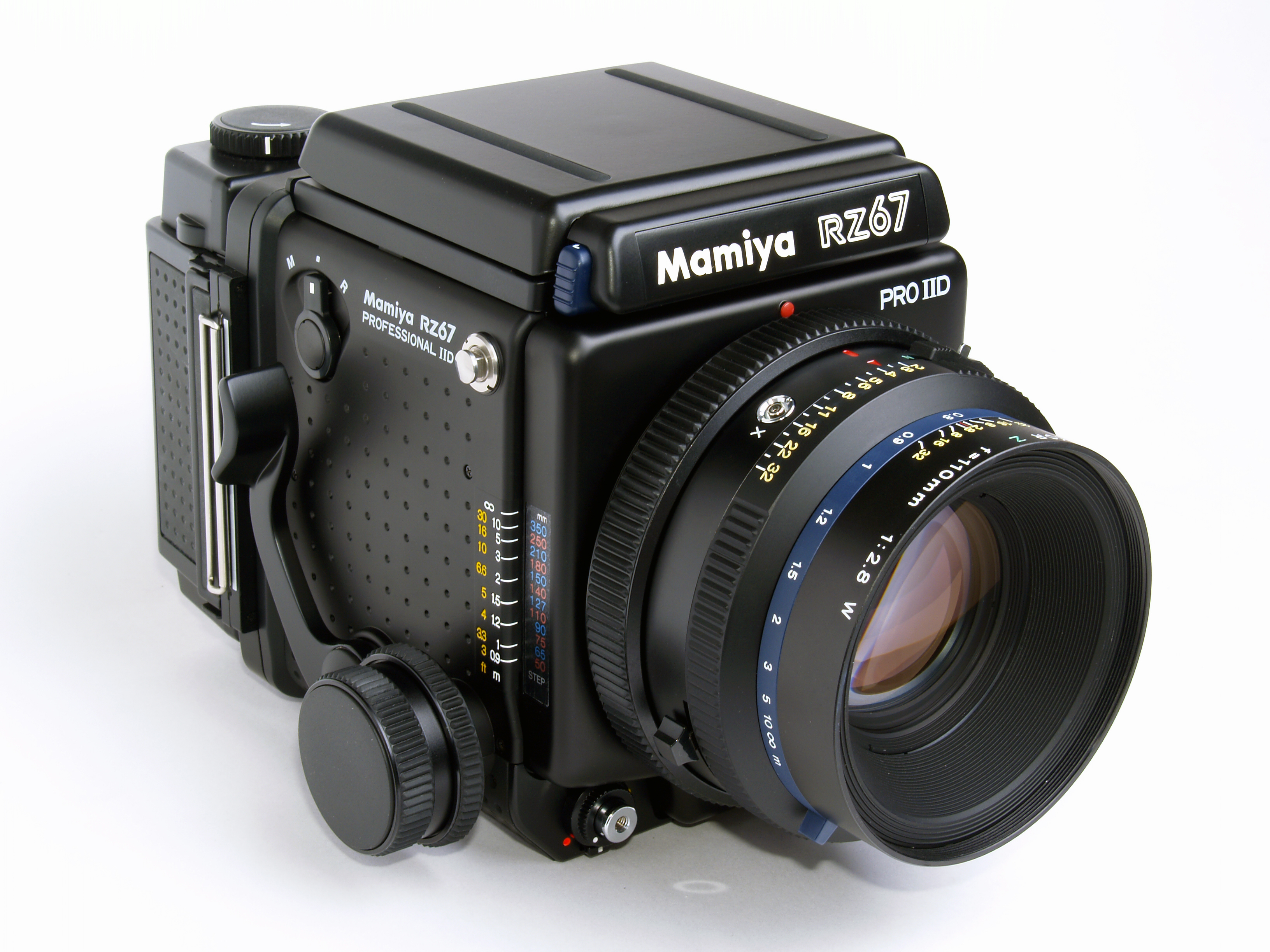

Mamiya RZ67 Pro IID BodyCODE NO.520030

Mamiya RZ33

[套机] Mamiya RZ PRO II D 机身 + 110mm F2.8 镜头 + DM33 3千3百万像素数码背

Mamiya RZ22

[套机] Mamiya RZ PRO II D 机身 + 110mm F2.8 镜头 + DM22 2千2百万像素数码背

RZ67 Pro IID + HX701(免线,有接点)转接器 CODE NO.524320

→配原厂 DM22/28/33 数码背或 M18/22/31(停产) 或 ZD数码背(停产)

RZ67 Pro/ProII系列也可加 + HX705/HX701转接器

→配原厂 DM22/28/33数码背或 M18/22/31(停产)

Sensitive rendering.
New hallmark of the pros.

Interchangeable Lenses for Mamiya RZ67, designed for professional accuracy. Latest technologies were used to create those lenses with the highest performance in color balance, contrast, resolution that make all the characteristics of excellent lenses. A quality, an image and color rendering to inspire professionals.

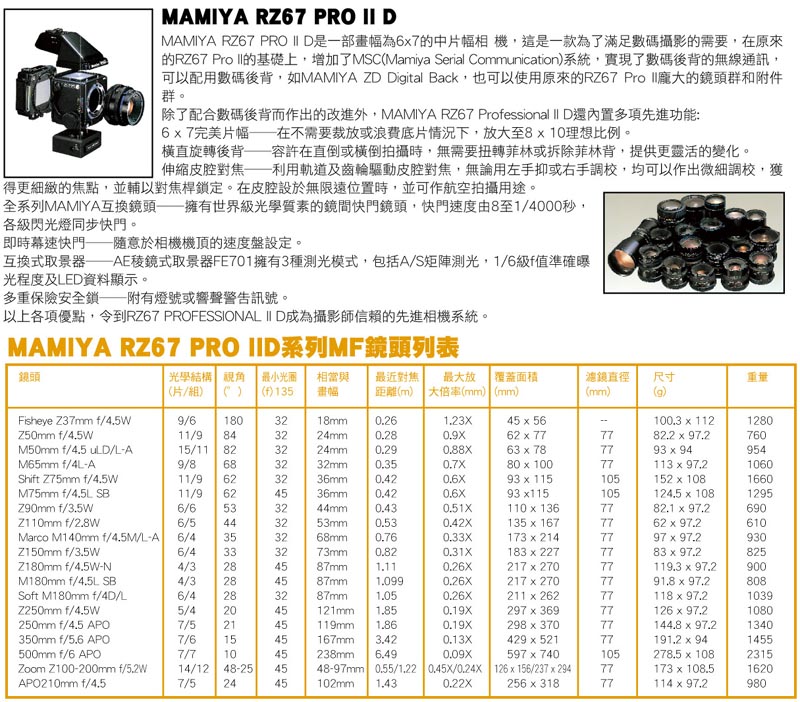

玛美雅 RZ67 镜头简介

Wide-angle lenses / 广角镜头

Fisheye Z37mm f/4.5W , Z50mm f/4.5W ,
ULD M50mm f/4.5L , M65mm f/4L-A

This 37mm fisheye lens provides a 180-degree field-of-view for unique perspective. The super wide-angle Z50mm f/4.5W lens allows detailed resolution of even peripheral elements. The M50mm ULD f/4.5L-A is a high-performance lens that employs ultra-low dispersion and anomalous dispersion glass to achieve an extremely small amount of chromatic aberration. Due to the use of a floating-element system, clear and uniform images can be obtained edge-to-edge in the 6*7 image area. The M65mm also employs a floating-element design and ultra-low dispersion glass to optimize color correction, eliminating ghost images and fully corrects optical distortion.

鱼眼镜头 Z37mm f/4.5W

CODE NO. 522011

Z50mm f/4.5W

CODE NO. 522111

ULD M50mm f/4.5L

CODE NO. 522112

M65mm f/4L-A

CODE NO. 522122

Standard lenses / 标准镜头

Z90mm f/3.5W , Z110mm f/2.8W

The 90mm is a retro focus design providing excellent, even contrast all the way to the periphery of the frame as well as high resolution. The 110mm is a Gauss design to offer extra brightness at a maximum aperture of f/2.8, full correction of optical distortion and fine resolution.


Z90mm f/3.5W CODE NO. 521011		Z110mm f/2.8W CODE NO. 521021

Telephoto lenses / 远摄镜头

Z150mm f/3.5W , Z180mm f/4.5W-N , Z250mm f/4.5W

The 150mm and 180mm lenses display high image quality and natural coloring throughout the whole picture even after opening up the aperture due to an increase in the amount of peripheral light. The 180mm lens is a Tessar type. The 250mm lens can achieve high image quality and natural coloring, as in the case of the 150mm and 180mm lenses, through the suppression of chromatic aberration and an increase in the amount of peripheral light.


Z150mm f/3.5W CODE NO. 522200		Z180mm f/4.5W-N CODE NO. 522222		Z250mm f/4.5W CODE NO. 522231

Macro lenses / 微距镜头

Macro M140mm f/4.5 M/L-A

The Macro M140mm lens is a Gauss-type lens. Through the adoption of a floating mechanism and maximum correction of various aberrations, clear high resolving power has been enabled from the center of the picture to its periphery. Naturally, shooting from a close distance up to infinity is possible and users can enjoy taking realistic portrayals with image ratios up to 1:1 through the use of an Extension Tubes.

微距镜头 M140mm f/4.5 M/L-A

CODE NO. 522512

Zoom lens / 变焦镜头

Zoom Z100-200mm f/5.2W

The 100-200mm zoom lens is the first zoom lens for a 6*7-format camera. It is always possible to achieve optimum framing from a distance of infinity to close range, even when there are constraints on the distance between subjects. Naturally, portrait shooting is possible and this lens is suitable for various kinds of photography. Moreover, as optical performance approaches the level of a single focus lens, excellent portrayal capability can be achieved.

变焦镜头 Z100-200mm f/5.2W

CODE NO. 522610

Vari-Soft focus lens / 柔焦镜头

M180mm f/4 D/L

The M180mm Variable Soft Focus (VSF) lens presents the most desirable focal length for the portrait photographer. It is supplied with three different diffusion discs which are inserted in the lens barrel. The overall level of softness (or sharpness) is controlled by the diaphragm opening, choice of disc, and whether or not a disc is used at all. It can produce images of a certain ethereal beauty which cannot be obtained by any other means, hides blemishes and saves retouching costs. When stopped down to f/8 or smaller apertures, it produces sharp images like a normal lens.

柔焦镜头M180mm f/4 D/L

CODE NO. 522215

Shift lens / 移轴镜头

The Shift 75mm lens provides versatile perspective control to the photographer to correct converging parallel elements within the image, or, conversely, to exaggerate perspective shifts to achieve special effects. It offers a maximum 20mm shift in either vertical or horizontal orientation, 17mm at angular orientation, and can be rotated through 360 degrees in 10-degree click stops.

移轴镜头Z75mmf/4.5W

CODE NO. 527132

APO lenses / APO低色散专业镜头

The most advanced optical technology was applied to this APO-Sekor series of professional telephoto lenses . The design incorporates elements made from ultra-low dispersion glass, a material which enables the lens designer to practically eliminate color aberrations, spherical aberrations and other types of optical distortion. These lenses provide high levels of detail, free from flare and ghost images, and produce images of total color fidelity. These lenses are just one more example of Mamiya's commitment to provide the professional with the very best photographic system, the RZ67 Professional IID.


APO 210mm f/4.5 CODE NO. 52225		APO 250mm f/4.5 CODE NO. 522240		APO 350mm f/5.6 CODE NO. 527300		APO 500mm f/6 CODE NO. 527330

SB Lenses for Shift / Tilt Adapter / 移轴转换器专用的SB镜头

M75mm f/4.5L SB; M180mm f/4.5L SB

SB (Short Barrel) lenses are designed for use with the Shift/Tilt Adapter, but are not limited to such use. The SB lenses allow continuous focusing from infinity to close-up when attached to the Shift/Tilt Adapter. The SB lenses may also be used on the Mamiya RZ camera without the Shift /Tilt Adapter and with the addition of the 27.2mm Auto Spacer, will focus continuously from close-up to infinity. Both the 75mm and the 180mm SB lenses are state-of-the-art designs capable of rendering exceptional resolution and contrast. Both use Mamiya 's own Formulation of high density/low dispersion glass as well as proprietary lens multi coating. (The 75mm SB lens does not have a built-in 75mm lens shift function.)


M75mm f/4.5L SB CODE NO. 522150		M180mm f/4.5L SB CODE NO. 522223

Auto Spacer-SPACER FOR M75mm f/4.5L SB & M180mm f/4.5L SB LENS SB

給M75mm/f4.5L和M180mm/f4.5L镜头用的焦距延伸管NA703

(取代移轴转换器间距，可达成由微距到无限远对焦)

CODE NO. 524113

Shift / Tilt Adapter / 移轴转换器

Shift/Tilt Adapter /移偏转换器 NI 701

CODE NO. 304180

Grand Glass Back SX701

CODE NO. 52471


Tilt Down/向下	Tilt Up/向上

Vertical Shift 垂直式移轴	Vertical Tilt/Shift Down 移轴及向下

M180mmf/4.5LSB (Shift/Tilt adjustment/ 移轴效果)

M180mmf/4.5LSB (Normal / 正常拍摄)

Shift/Tilt Sample Pictures/移偏转换器例图

Macro微距M140mm f/4.5M/L-A (Tilt adjustment / 移轴效果)

Macro 微距M140mm f/4.5M/L-A (Normal / 正常拍摄)

Film Holders / 胶卷背
	120 Roll Film holder HA703 CODE NO. 524221	220 Roll Film holder HB702 CODE NO. 524231	6 x 4.5 120 Roll Film holder HA704 CODE NO. 524281	Polaroid Land Pack Film holder HP 702 CODE NO. 524253

Film Type:	120 Roll Film	220 Roll Film	120 Roll Film	Polaroid Land Pack Film (100&660 Series)
Actual Film Image Size:	6 x 7cm format (56 x 69.5mm)	6 x 7cm format (56 x 69.5mm)	6 x 4.5cm format (56 x 41.5mm)	7 x 7cm format (69.5 x 69.5mm)
Number of Exposures:	10 exposures	20 exposures	15 exposures	8 exposures (FP only 10 exposures)
Film Advance System:	The film is advanced with a single 114˚ stroke of the cocking lever, and can also be advanced with the Film Advance knob of the Film holder.			Peel Apart System
Additional Features:	Built-in double exposure prevention, multiple exposure provision, automatic film wind-stop release, built-in Film Speed Dial. Exposure Counter with automatic return, Film-Unadvanced indicator, automatic Dark Slide lock and release Memo Clip, built-in Dark Slide Slot.			Built-in Film Speed Dial
Weight:	530g	530g	530g	330g

Mamiya Digital Back Adapter (HX701)

玛美雅ZD Back数码背转接器(HX701)

可转动垂直或水平拍摄

This adapter allows the attachment of digital backs compatible with the Mamiya cameras exclusive digital communication specification (MSCE). Equipped with a revolving mechanism, which permits vertical or horizontal composition.
-Size: 114mm (w)*16.8 (d)*114 (h) mm (with the revolving knob)
-Weight: 106g

ZD/DM22&33数码背专用对焦屏

SA705 Focusing Screen RZ Type A Matte w/36x48 (Optional)
SA705 是刻有ZD/DM22&33 Digital Back36x48CCD拍摄范围框的A型磨沙对焦屏(另购)

CODE NO.524413

Focusing Hood (FW702) / 腰平观景器

CODE NO. 524451

This convenient waist-level focusing hood pops open with a single touch to provide bright screen viewing of the entire frame; raising the center magnifier makes fine focusing quick and easy, while also creating a completely light-tight hood.

Magnification	110mm standard lens, 1:1.28 image at ∞ (1:2.9 with the magnifier)
Field-of-View	95 %
Correction	standard magnifier lens features diopter -1.5 correction, five additional diopter correction lenses are available in steps from +1 to -3.
Weight	150g

AE Prism Finder (FE701) / 光圈优先测光模式眼平观景器(LED 灯)

CODE NO. 524471	This aperture-priority AE finder offers both spot and averaged metering choices, as well as its own special auto-selection function that switches between spot and averaged automatically to suit the shooting conditions.
Type	correct-image prism viewfinder from 30˚angle
Magnification	0.81x with 110mm lens(1.8x loupe)
Metering range	EV1-EV18.5 (f/2.8 at 4" to f/32 at 1/400") with 110mm f/2.8W lens, ISO 100
Correction	-0.8 diopter (standard) with correction lens (8 types +3~-4 diopter) thread
Metering type	TTL with averaged, spot or auto averaged/spot selection
Shutter speeds	automated: 8-1/400sec. (in 1/6 EV steps) manual: 8-1/400sec. (in 1/2 EV steps)
Film sensitivity	ISO 25-6400 (in 1/3 steps), connected to the dial and interface of the holder 's ISO sensitivity setting
Field-of-View	95%
Finder indicators	backlit LED indicators for shutter speeds (1-1/400sec. ; LT mechanical shutter operation indicated in seconds by dual LEDs; exposure range limits indicated by blinking or LT LEDs ( blinking for over-exposure, LT blinking for under-exposure); metering choice indicated by A/S LEDs; manual exposure indicators light red/orange/green.
Exposure compensation	+/-3EV (in 1/3 steps)
AE lock	function-selectable
Power	operates on camera power (with camera shutter dial set to AEF position)
Weight	940g

Focusing Screen / 对焦片

7 types available to be used according to the lenses and shooting purpose and conditions.

	Type A Matte(A型磨沙): All matte with Fresnel lens, suited for general purpose photography. (Supplied with camera) CODE NO. 524410
	Type A3 Matte(A3型黑角磨沙): Same as Matte, but with black corners (which act as an extension of the viewfinder mask), for general purpose photography. CODE NO.524401
	Type A4 Checker(A4型横直线): Same as Matte, but with perpendicular grid. Pattern ideal as a compositional aid. Grid intersections also useful as reference points for multiple exposures. CODE NO. 524412
	Type B Range finder Spot(B型中央圆圈裂像): Same as Matte, but with a vertical central split-image rangefinder wedge added. Matte surface can be used for focusing, but the vertical split-image feature makes focusing easier and more accurate for subjects such as portraits. CODE NO. 524403
	Type C Microprism(C型微棱): Same as Matte, but with central microprism spot added. Provides an alternative Rangefinder Spot screen with same benefit of enhanced focusing precision. CODE NO. 524404
	Type D Cross Hair(D型十字星光镜片): All matte screen with small aerial (totally transparent) spot with cross hairs. Used for parallax focusing and designed for special high magnification applications. Especially suited for macro and telephoto photography. CODE NO. 524405
	Type E Range finder Sport/Microprism(E型中央圆圈裂像/微棱): Same as Matte, but with a horizontal split-image center focusing aid surrounded by microprism collar. Highly versatile 3-way focusing (rangefinder, microprism, and matte). Ideal for general purpose photography. CODE NO. 524406

Diopter Lense for RB/RZ Waist Level Finder

RB/RZ腰平观景器屈光片

+1   CODE NO.514571
+0   CODE NO.514572
-1    CODE NO.514573
-1.5 CODE NO.514574
-2    CODE NO.514575
-3    CODE NO.514576

Eye Correction Lenses For RB/RZ Prism Finder

RB/RZ眼平观景器矫视片

+3   CODE NO.514581
+2   CODE NO.514582
+1   CODE NO.514583
-0.5 CODE NO.514584
-1    CODE NO.514585
-2    CODE NO.514586
-3    CODE NO.514587
-4    CODE NO.514589

Winder RZ Model 2 / 2型电动卷片器(每秒1.5张)

CODE NO. 524612		An extremely important accessory for almost all professional applications, the Winder RZ frees the photographer from the need to manually activate the film advances/shutter cocking mechanism. This lets the photographer concentrate fully on the subject, while the motorized winder takes care of the film, shutter and mirror settings. Single-frame or sequential film advance (1.5sec/per frame); the Winder RZ Model 2 is powered by six AA type alkaline cells (500-600 consecutive shots are possible), or six Ni-Cd batteries (300-360 consecutive shots are possible). Dimensions: 100(w)43(h)95(d)mm, Weight: 550g (without batteries)

Mamiya Quick-Shoe AQ7011 / 玛美雅快装板及板夹

CODE NO. 804070		The shoe that makes tripod-mounted camera changes quick and easy. Slip on a camera and it instantly locks in place on the shoe automatically. A double , action release mechanism allows quick operation while protecting against automatic release. Weight: 225g

L-Grip Holder RZ / L-型手柄(附有闪光灯冷靴)

CODE NO. 524700		A contoured left-hand grip that provides excellent balance for both hand-held shooting and for carrying. The grip is equipped with a locking shutter release (electronically linked to the camera's own release) and a cold-shoe for accessories. Weight: 390g

Mirror Lock-up Cable Release / 双头反光镜锁快门绳

CODE NO. 514140	The perfect tool to prevent even the slightest shake during slow-shutter-speed exposures; one cable connects to the camera body's shutter release, the other to the Mirror Lock-up switch. When the release is pressed, the Mirror Lock-up operation activates first, followed by operation of the shutter. Very useful for both close-up and telephoto applications. Weight: 90g

Magnifier (for Prism Finder) / 放大镜(供眼平观景器)

CODE NO. 524350		Attached to the prism finder, it assures enhanced precision focusing by magnifying the central portion of the screen. After focusing, it can be raised to confirm overall composition. Built-in -6 to +4 diopter correction. Weight: 70g. 将中央部份放大加强对焦精确性。内置 -6 至 +4 屈光调较。只重70克。

*Tele-Converter 1.4RZ /**1.4倍增距镜

CODE NO. 522610		This tele-converter is optically designed to provide the best possible results in use with the superior Z series lenses; it provides an effective focal length extension of 1.4x, and can be recommended for the following Z series lenses; 90mm, 110mm, 140mm, 150mm, 180mm. Dimensions (LW): 3797.2mm Weight: 430g

Gelatine Filter Holder Model 2/ 滤片夹2型

A Special holder for 3-inch (7.5cm) gelatine filters; attaches to 50, 65, 90, 110, 140, 150, 180, 210, 250, and 350mm lenses. This holder is indispensable for accurate correction of color (under differing types of light, for example). The holder allows insertion of multiple filters. Weight: 45g
CODE NO. 524090

Bellows Lens Hood G-2 / 风琴型伸缩遮光罩G-2

Attaches to the front accessory thread of Z series (90mm~350mm) lenses; provides optimum shading of the lens to prevent all stray light. Rack & pinion adjustment allows selection of optimal setting by actual preview; width is easily adjusted; incorporates gelatine filter holder. Maximum and minimum extension of bellows: 110mm and 30mm.Weight: 290g

適用於90mm至350mm鏡頭，軌道式伸縮調校容許最大範圍遮擋雜光的進入，增加影像清晣性。
內置3吋Gelatine濾片插座；30mm至100mm伸縮距離；重290克。

CODE NO. 524080

Auto Extension Tube RZ / RZ 近摄环(适合微距拍摄)

No. 1

CODE NO.524110

No. 2

CODE NO.524111

This series of extension tubes, for close-up and macro-photography, provides fully automatic shutter operation. The two automatic tubes can be used individually or in combination.
No.1=45mm extension;
No.2=82mm;
No.1+2=127mm. Since the camera body bellows features an extension of 46mm, using the tubes provides a total maximum extension of 173mm.
Weight: No.1...330g, No.2...410g

140mm f/4.5 Macro at closest focus

140mm f/4.5 Macro + No. 1

140mm f/4.5 Macro + No. 2

140mm f/4.5 Macro + No. 1 & No. 2

Bellows Lens Hood G-3 w Gelatine Filter Mount/ 风琴型伸缩遮光罩G-3 (有滤片夹)
适用于65mm至350mm焦距镜头, 不适合75mm移轴镜. 采用套紧上锁方式, 重335克.
CODE NO. 528085		Utilizing side struts, instead of base rails, this Bellows Lens Hood G-3 provides highly efficient protection against extraneous light and it has inserting slots for 3 inch (7.5cm) square filter and 12cm square size vignetter. Vignetter can adjust up and down within 14mm. Gelatine filter mount (code no. 524087) is provided. The G-3 can be used with lenses of focal lenght from 65mm to 350mm and 100 to 200m Zoom lenses except for the 75mm shift lens. Maximum and minimum extent of bellows: 175mm and 50mm. Weight: 335g

Front Hood for G-3 / 给风琴型伸缩遮光罩G-3延伸遮光使用
延伸后适用于127mm至350mm焦距镜头, 不适合75mm移轴镜头和 500mm APO镜头 , 100~200mm变焦镜头要注意不适合使用的短焦距. 重145克.
CODE NO. 524086		Using the Front Hood for G-3 along with Bellows Lens Hood G-3 will bring higher vignetting efficiency. With the Front Lens Hood used along with Bellows Lens Hood G-3, it can be possible to use 50mm f/4.5W lens or longer focal length lenses, expect for 100-200mm zoom lens and 500mm APO lens. Front Hood for G-3 has an inserting slot for 12cm square size vignetter. Maximum and minimum extent of bellows: 105mm and 25mm. Weight: 145g

Remote Control RS401/ 红外线遥控快门绳

CODE NO. Y02830		Consists of Transmitter and camera-mounted Receiver. Choice of three infrared channels for interference free operation. 30m operating range. Transmitter uses two AA Alkaline, Receiver one 9 Volt batteries. Weight: Transmitter: 130g (without batteries) Receiver: 140g (without batteries)

Electro-Magnetic Cable Release/ 电子快门绳

Connects to the electronic shutter release socket of the camera.

Type A (1米长)

Type A: Coil Cord, approx. 1m long, weight: 39g CODE NO. 804810

Type B: Straight and approx. 4m long.(4米长) CODE NO. 804820

Mamiya Aluminum Trunk/ 玛美雅原厂铝箱

A light brown finish with alumite treated surfaces and high strength prism cut resin corner guards for a trunk that's both good looking and tough. The interior can be freely partitioned to store cameras and lenses, and all interior surfaces are cushioned with a thin urethane layer. The top of the trunk has packets that can be used to store accessories and other small items. Available in three different sizes.

Model No.	Outside: W x D x H mm Inside: W x D x H mm	Weight kg
KM705	460 x 344 x 160	3.7
	440 x 325 x 100
KM706	502 x 371 x 183	4.9
	470 x 350 x 115
KM707	615 x 371 x 183	5.7
	580 x 350 x 115

Specifications subject to change without notice.

规格与性能视实际情况而定，如有任何更改恕不另行通知。

27/6/2013
