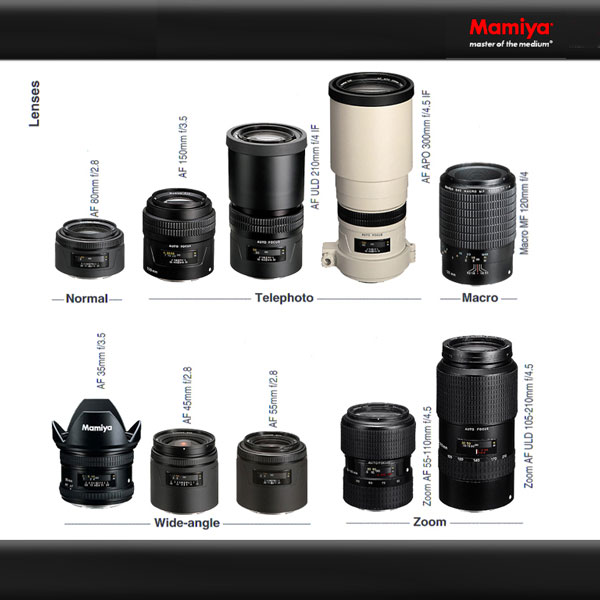

Mamiya 645 AF Lenses:

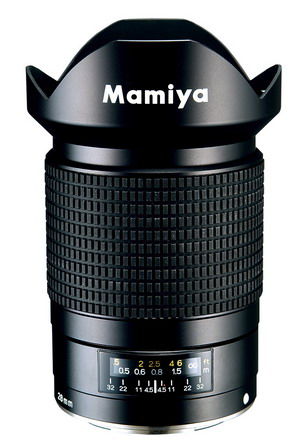

AF 28mm / f4.5 D 非球面超广角镜头 CODE NO.3121110

●非球面超广角镜 ●全片幅范围覆盖,可用于胶卷和数码拍摄 ●特别适合建筑和风光

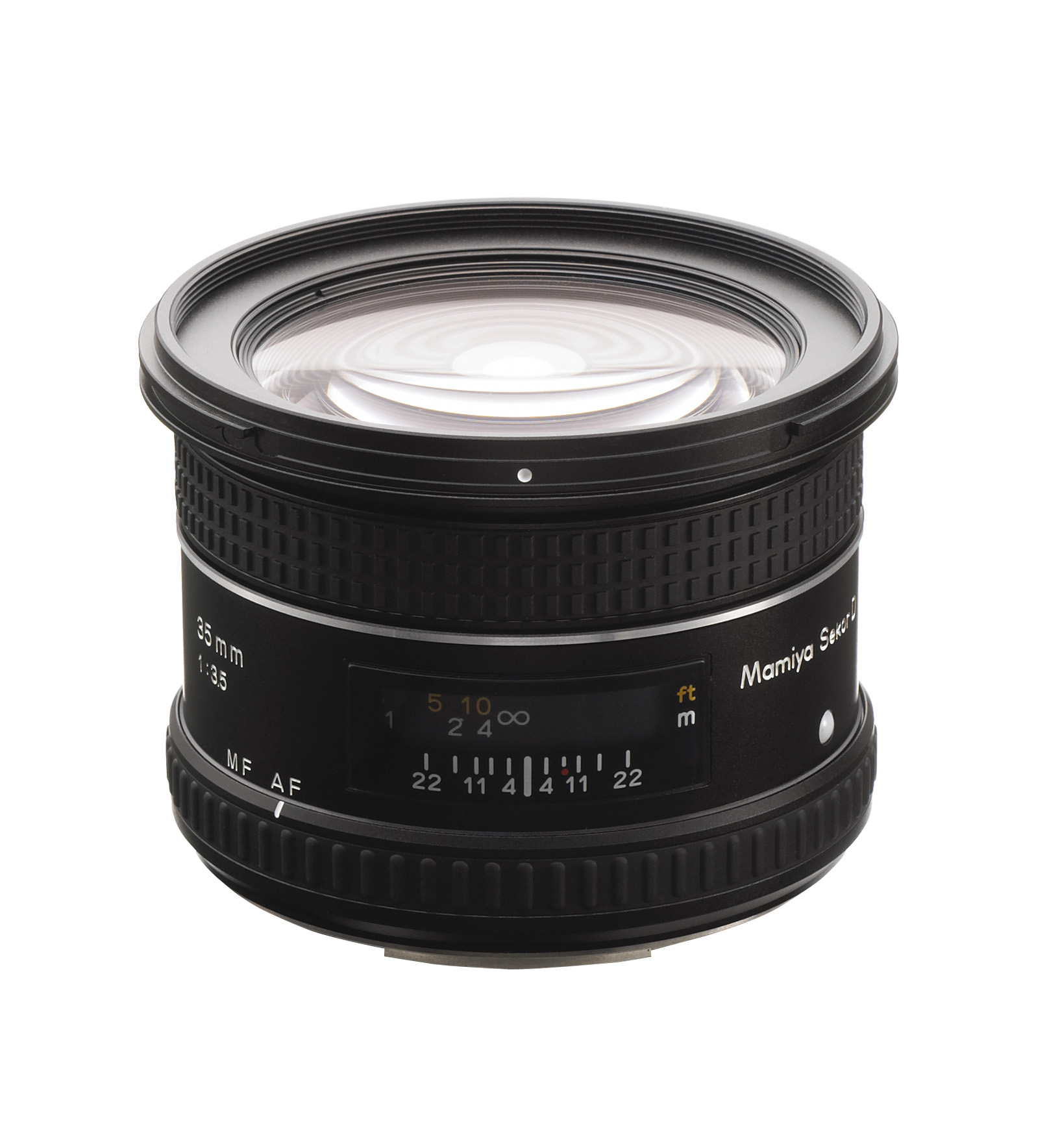

AF 35mm / f3.5 D 超广角镜头 CODE NO.800-59100A

●90°广角 ●小朽轻便 ●旅游拍摄

Compact and light weight wide angle. Ideal for street, lanscape, interior or architecture photography.

CPU/处理器: 16 bit (rewritable)
Compatible Cameras/适用于: Mamiya 645DF, 645AFD II/III & ZD Camera.

AF 35mm / f3.5 超广角镜头 CODE NO. 312120


Using 120/220 film, the 90˚angle of view is equivalent to an ultra-wide angle 22mm focal length (compared to 35mm format) and for digital capture it acts as a normal/wide angle lens. This state-of-the-art lens design maintains high contrast and resolution continuously from infinity focus to the 13.75˚ minimum focusing distance. The characteristic deep depth of field will be an advantage for many applications, including landscape, group and documentary photography. Each lens element is precisely polished and coated using Mamiya's proprietary multi-coating process to increase light transmission, dramatically reduce flare, and ensure crisp clean whites and vibrant, yet natural colors. An independent manual focus/autofocus setting ring is located on the lens for quick changes in and out of autofocus while maintaining a natural camera balance.　

AF 35mm/ f3.5 D & AF 35mm/ f3.5 Specifications 镜头规格
Optical Construction 光学结构（片／组）	9 elements/7 groups
Angle of View 视角	90˚
Minimum Aperture 最小光圈	f/22
Diaphragm 光圈	Automatic 自动
Focusing System 对焦系统	Auto Focus自动/ Manual手动
Minimum Focusing Distance 最近对焦距离	13.75in / 35cm
Maximum Magnification Ratio 最高放大倍率	0.156
Area Covered 影像范围	10.5 x 14.1in / 266 x 359mm
Equivalent 35mm Focal Length  相等於35mm片幅 (with 48x36mm CCD) (DM22&33数码背/ZD Back)→	22mm   (25mm)
Filter Size 滤镜直径	77mm
Lens Hood 遮光罩	Bayonet 插刀式
Dimensions 体积(L x W)	2.4 x 3.3"" (62 x 84mm)
Weight重量	17.3 oz. / 490g.


AF 45mm / f2.8 D 广角镜头 CODE NO.312131

●低色散镜片 ●大光圈镜头利于弱光拍摄 ●小朽轻便

Using low dispertion glass, this wide angle lens offers minimal chromatic aberration and is ideal for high contrast conditions.

CPU/处理器: 16 bit (rewritable)
Compatible Cameras/适用于: Mamiya 645DF, 645AFD II/III & ZD Camera.

AF 45mm / f2.8 广角镜头 CODE NO.312130


With an angle of view of 74 degrees, this lens is equivalent to a 29mm lens in 35mm format. Its wide angle of view and deep field makes the lens appropriate for any situation, from snapshots to scenics. Low-dispersion glass minimizes chromatic aberration. A floating mechanism lends uniformity to image resolution, from center to periphery. This lens is also suitable to architectural photography and other subjects dominated by straight lines, and it offers sharp and crisp rendering.

AF 45mm/ f2.8 D & AF45mm/ F2.8  Specifications 镜头规格
Optical Construction 光学结构（片／组）	9 elements/7 groups
Angle of View 视角	74˚ D Lens 76˚
Minimum Aperture 最小光圈	f/22
Diaphragm光圈	Automatic 自动
Focusing System 对焦系统	Auto Focus自动/ Manual手动
Minimum Focusing Distance 最近对焦距离	17.7in / 45cm
Maximum Magnification Ratio 最高放大倍率	0.13  D Lens 0.14
Area Covered 影像范围	12.2 x 16.5in / 310 x 418mm D Lens 393 x 291 mm
Equivalent 35mm Focal Length 相等于35mm片幅 (with 48x36mm CCD) (DM22&33数码背/ZD Back)→	29mm (32mm)
Filter Size 滤镜直径	67mm

Lens Hood 遮光罩	Bayonet 插刀式
Dimensions 体积(L x W)	73.5 x 77mm
Weight 重量	530 g.


 AF 55mm / f2.8 广角镜头 CODE NO.312150


●大光圈 ●约相等于34mm(135相机)镜头般广角影像自然 ●容易平衡日光和闪光

With an angle of view of 64 degrees, this lens is equivalent to a 34mm lens in 35mm format. With minimal perspective change, it produces the most natural image of all the wide angle lenses. A floating element mechanism improves resolution at the periphery in close-ups, for image sharpness all the way out to infinity. This lens is suitable for a wide range of situations, from general photography to scenics. It is designed to provide the feel of a standard lens with a slight wide angle effect.

AF 55mm/ f2.8 Specifications 镜头规格
Optical Construction 光学结构（片／组）	7 elements/6 groups
Angle of View 视角	64˚
Minimum Aperture 最小光圈	f/22
Diaphragm 光圈	Automatic 自动
Focusing System 对焦系统	Auto Focus 自动/ Manual手动
Minimum Focusing Distance 最近对焦距离	17.7 in. / 45cm
Maximum Magnification Ratio 最高放大倍率	0.18
Area Covered 影像范围	8.90 x 12 in / 226 x 305mm
Equivalent 35mm Focal Length相等於35mm片幅 (with 48x36mm CCD) (DM22&33数码背/ZD Back)→	34mm (40mm)
Filter Size 滤镜直径	58mm
Lens Hood 遮光罩	Bayonet 插刀式
Dimensions 体积(L x W)	49.5 x 77mm
Weight 重量	16 oz. / 442 g.



AF 80mm / f2.8 D 标准镜头 CODE NO.311030

●大光圈,可浅景深 ●十分优良的光学表现 ●小朽轻便

This is the standard focal lenght lens with the most versatility. A perferred choice for on location fashion photographers using fill in flash.

CPU/处理器: 16 bit (rewritable)
Compatible Cameras/适用于: Mamiya 645DF, 645AFD II/III & ZD Camera.

AF 80mm / f2.8 标准镜头 CODE NO.311020

With an angle of view of 47 degrees, this lens is equivalent to a 50mm lens in 35mm format. This is the standard lens for the format, with a field of view approximating natural human sight. It is the most general-purpose lens in the series, and works well in various applications for close or distant subjects. Packing high performance into a compact, lightweight configuration, it is well corrected for distortion, producing a natural, well-balanced image.

AF 80mm/ f2.8 D & AF 80mm/ f2.8  Specifications 镜头规格
Optical Construction 光学结构（片／组）	6 elements/5 groups
Angle of View 视角	47˚
Minimum Aperture 最小光圈	f/22
Diaphragm 光圈	Automatic 自动
Focusing System 对焦系统	Auto Focus 自动/ Manual手动
Minimum Focusing Distance 最近对焦距离	27.5in / 70cm
Maximum Magnification Ratio 最高放大倍率	0.15
Area Covered 影像范围	11 x 14.8 in. / 279 x 377mm
Equivalent 35mm Focal Length相等於35mm片幅 (with 48x36mm CCD) (DM22&33数码背/ZD Back)→	50mm (58mm)
Filter Size 滤镜直径	58mm
Lens Hood 遮光罩	Bayonet 插刀式
Dimensions 体积 (L x W)	49.5 x 77mm
Weight 重量	11 oz. / 300 g.

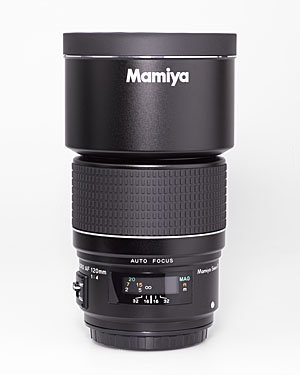

MF 120mm / f4 D Macro 手動对焦微距镜头  CODE NO. 322500

MamiyaZD相机及６４５AFDⅡ, AFD III , DF 専用. / For Mamiya ZD Camera and 645AFDII & III, 645DF only.

●极佳的光学表现  ●1比1微距放大倍数  ●产品和人像均适合

With an angle of view of 33 degrees, this lens is equivalent to a 73mm focal length in 35mm format. Pinpoint sharpness with manual focus is confirmed from infinity to 1:1 magnification, without additional adapters, by a green diode in the finder. This lens provides a flattering perspective suitable for tight portraits, and permits good working distances in or out of the studio. It can be used for anything from extreme detailed close-ups to full-length portraits. The lens is manually focused (MF) and utilizes focus confirmation in the Mamiya 645AFD body plus auto-diaphragm operation.

Anomalous dispersion optical glass is employed to reduce chromatic aberrations, which results in APO-quality lens performance when focused from infinity to 1:2 magnification, and significantly reduces chromatic aberration from 1:2 to 1:1 magnification. The optical engineering and multi-coatings of this lens achieve excellent color balance, high contrast and high resolution over the entire focusing range, which is an extraordinary accomplishment for a Macro lens. The barrel design reduces flare significantly.

Mamiya uses eco-glass, which contains no lead or arsenic, maintaining the company's ""Earth-friendly, Nature-friendly"" policy.

MF (Manual Focus) 120mm f/4 D Macro Specifications 镜头规格
Optical Construction 光學結構（片／組）	9 elements, 8 groups
Angle of View 视角	33˚
Minimum Aperture 最小光圈	f/32
Diaphragm 光圈	Automatic 自动
Focusing System 对焦系统	Manual 手动(focus confirmation)
Minimum Focusing Distance 最近对焦距离	1.3 ft. (40 cm)
Maximum Magnification 最高放大倍率	1:1
Area Covered 影像范围	1.65 x 2.25"" (42 x 56 mm)
Equivalent 35mm Focal Length 相等於35mm片幅 (with 48x36mm CCD) (DM22&33数码背/ZD Back)→	74mm (87mm)
Filter Size 滤镜直径	67mm
Lens Hood 遮光罩	Built-in 內置式
Dimensions 体积 (L x W)	4.4 x 3.25"" (111 x 83mm)
Weight 重量	1.8 lbs (845g)

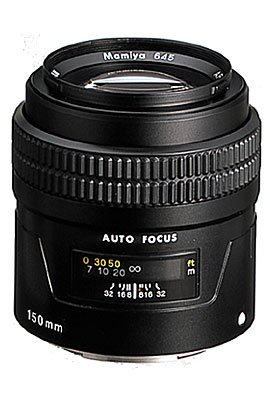

AF 150mm / f2.8 IF D 高速远摄镜头 CODE NO.312110

●全开光圈下角对角也有惊人的锐利影像 ●低光表现非常好 ●内部对焦设计改善手持平衡性

AF 150mm / f3.5 远摄镜头 CODE NO.312220

Ideal for portraiture, this lens captures a natural, dimensional image while providing a comfortable distance between photographer and subject. With an angle of view of 27 degrees, this lens is equivalent to a 93mm lens in 35mm format.

The AF 150mm f/3.5 lens features a two-position manual/autofocus ""clutch"" on the lens barrel for quick transitions to manual focus via a quick pull on the lens' focusing ring. Conversely, a small forward push on the lens' focusing ring engages the autofocus again.

Applications include portraiture, fashion, beauty, sports and landscape telephotography.

AF 150mm/ f3.5 Specifications 镜头规格
Optical Construction 光学结构（片／组）	5 elements/5 groups
Angle of View 视角	26˚
Minimum Aperture 最小光圈	f/32
Diaphrag光圈	Automatic自动
Focusing System 对焦系统	Auto Focus自动/ Manual 手动
Minimum Focusing Distance 最近对焦距离	4.9 ft. (150cm)
Maximum Magnification Ratio 最高放大倍率	0.12
Area Covered 影像范围	18.1 x 13.4"" (461 x 341mm)
Equivalent 35mm Focal Length 相等於35mm片幅 (with 48x36mm CCD) (DM22&33数码背/ZD Back)	93mm (108mm)
Filter Size 滤镜直径	58mm
Lens Hood 遮光罩	Bayonet 插刀式
Dimensions 体积 (L x W)	80.5 x 79mm
Weight 重量	19 oz. / 540g
