產品詳細資料

PRODUCT ID

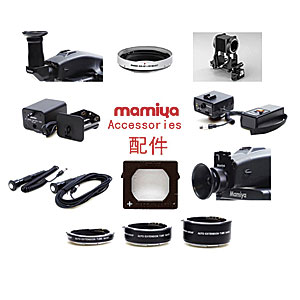

玛美雅645配件/Mamiya 645 Accessories



645DF645AF系列相机配件:

Accessories for 645DF or 645AF series:



屈光片
  /
Diopter Lens

upload images

DE401(Standard/ 标准, -2.5 to + 0.5 pt) (supplied with camera/跟机附载) CODE NO. 314461

DE402(Shortsighted/ 近视, -5 to 2 dpt)  CODE NO. 314462

DE403(Farsighted/ 远视, 0 to +3 dpt)    CODE NO. 314463


哈苏V系列镜头转Mamiya 645相机接环 /

Hasselblad V series Lenses Adapter for 645DF,AF series & ZD Camera

黑色 /  Black Colour CODE NO.314070

银色 / Silver ColourCODE NO.314071


放大器-FD402 / Magnifier FD402 CODE NO.314360

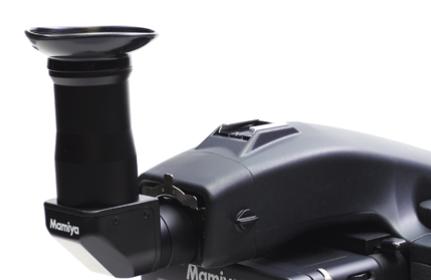

360度自由旋转直角取景器-FA401 / Angle Viewfinder FA401 CODE NO. 314350

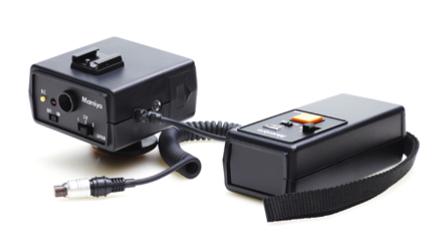

RS402 红外线无线摇控快门绳(100户外) / Remote Control Set RS402 CODE NO. 804710

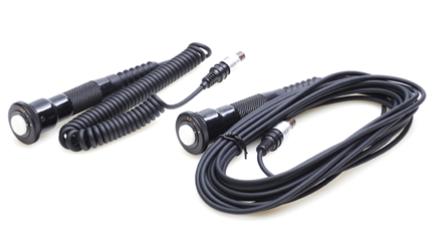

电子快门绳(RE401- 1米长 / RE402- 5米长) /

Electro-Magnetic Cable Release (
RE401-1m CODE NO. 804821) (RE402-5m CODE NO. 804822)


近摄环 / Close-Up Equipment

Auto Extension Ring NA401(No.1) CODE NO. 314061

upload images(1号)

Auto Extension Ring NA402(No.2) CODE NO. 314062

upload images(2号)

Auto Extension Ring NA403(No.3) CODE NO. 314063

upload images(3号)

Ring combination

近摄环+组合

Magnification

放大倍率

Distance

最近焦距

Subject size

被摄体大小

Exposure factor

曝光倍率

NA401

0.15 ~ 0.30

58.7 ~ 31.0cm

28.2 x 38.1 ~ 13.9 x 18.7cm

x 1.3 ~ 1.7

NA402

0.29 ~ 0.45

31.5 ~ 22.2cm

14.1 x 19.0 ~ 9.3 x 12.6cm

x 1.7 ~ 2.1

NA403

0.44 ~ 0.59

22.4 ~ 17.7cm

9.4 x 12.7 ~ 7.0 x 9.4cm

x 2.1 ~ 2.6

NA401+NA403

0.60 ~ 0.74

17.9 ~ 15.1cm

7.0 x 9.5 ~ 5.6 x 7.6cm

x 2.6 ~ 3.1

NA402+NA403

0.74 ~ 0.89

15.1 ~ 13.3cm

5.6 x 7.6 ~ 4.7 x 6.3cm

x 3.1 ~ 3.6

NA401+NA402+NA403

0.88 ~ 1.04

13.3 ~ 12.0cm

4.7 x 6.3 ~ 4.0 x 5.4cm

x 3.6 ~ 4.2

NC401伸缩皮腔微距近摄環(0.75~2.2x 放大倍率)(80mm镜头计算)(附倒接环) / Auto Bellows NC401 w Reverse Ring  CODE NO. 314100

upload images

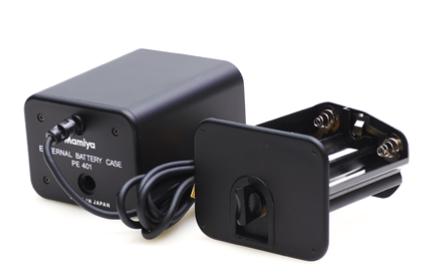

外置电池箱-PE401 / External Battery Case PE401 CODE NO. 804054



对焦片 / Focusing Screen

-Type A SV403型号 磨沙片,有48x36mm CCD数码背取景框线 /

Type A SV403 w/Tweezers(Matte w/36x48 CCD frame)

CODE NO. 314475

-Type A4 SD403型号 格仔片,有48x36mm CCD数码背取景框线 /

Type A4 SD403
w/Tweezers(Checker w/36x48 CCD frame)

CODE NO. 314478


 upload images

Type A SA402型号-磨沙

Type A Matte SA402
All matte with Fresnel lens, suited for general-purpose photography.(Supplied with camera)

CODE NO. 314471

upload images


Type A4 SD402型号-磨沙加 横直线

Type
A4 Checker SD402
Same as Matte, but with perpendicular grid.  Ideal for copy, architectural photography.


CODE NO. 314472

upload images

 Type C SF402型号-中心微棱(手动镜头专用)

Type C Microprism SF402(for Non-AF 645 Lenses)
Must be used when using Manual type M645 lenses to 645AF camera.

CODE NO. 314474


120/220 Roll Film Holder HM402 (not for 645DF)

HM402胶卷后背配合645DIII相机拍摄速度可高达每秒2格和可打印镜头焦距信息.(645DF不适合使用)

120/220 Roll Film Holder HM401 (not for 645DF) CODE NO. 314210

upload imagesHM401胶卷后背(645DF不适合使用)

Polaroid Pack Film Holder (not for 645DF) CODE NO. 314250
HP402

upload images宝丽莱背(645DF不适合使用)


规格与性能视实际情况而定,如有任何更改恕不另行通知。

Specifications and features are subject to change without notice.
