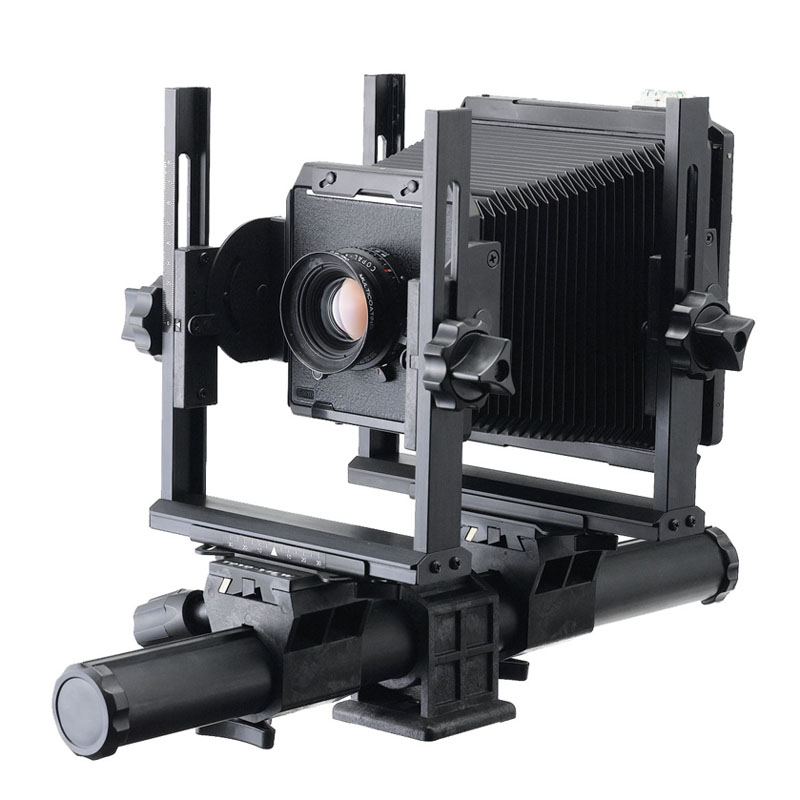

多才多藝，經濟，全方向性的45CX不論在室內影棚和戶外地點拍攝都非常適合。它擁有緊湊的框
架和可折迭的皮腔設計，機身採用輕合金和聚碳酸酯纖維材料製造達到同時有堅固和更輕便的效
果，所以45CX是一款緊湊的、便攜性強設計的、後方有雙重軸水平儀的和有對準指示線可互換性
450mm (39mm直徑) 堅固單路軌的全面性能照相機。
| TOYO-VIEW 45CX (Try) |
| Item No. 產品號碼 |
No. 109 |
| Movement 活動範圍 |
Front Frame 前架 |
Rear Frame 後架 |
| Rise 上升 |
80mm |
80mm |
| Shift 移動 |
30mm+30mm |
45mm + 45mm |
| Swing 搖擺幅度 |
30˚ + 30˚ |
30˚ + 30˚ |
| Tilt 傾斜度 |
45˚ + 45˚ |
45˚ + 45˚ (Vertical)垂直
40 ˚ + 40˚(Horizontal)橫放 |
| Fine Focus 微調對焦 |
42mm |
42mm |
| Flange Back 皮腔伸縮範圍 |
80 mm～435 mm |
| Camera Back 相機背 |
Vertical/Horizontal reversible back. Printed cm grid ground glass可反轉的直/橫背。蝕刻厘米方格對焦屏 |
| Monorail 單軌接管 |
39mm in diameter, standard 450mm, non extendable 直經39mm,標準450mm長,固定長度. |
| Lens Board 鏡頭板 |
110 mm x 110 mm |
| Folded Size 最小尺寸 |
(H)322 x (W)277 x (L)478mm |
| Weight 重量 |
3.6 kg / 7.9 lbs |
| Minimum Flange with Wide Angle Board 廣角鏡頭板最小伸展距離 |
67.5mm |
 The new Toyo 45CX features all movements expected of a versatile monorail view camera. Utilizing the standard Toyo 39mm diameter 18" base rail with micro focusing, its interchangeable bellows permit the camera to be folded into a very compact package when taken from the studio to outside locations.
Both front and rear standards offer center 45° tilt movements, 30° swing movements, and 80mm rise. The shift movement of the front standard is 30mm. The rear standard's is 45mm. The minimum bellows extension is 80mm with a flat lensboard, 76.5mm with a 12.5mm recessed board.
Its reversible Graflok type back accepts all 4x5 cutfilm holders, Kodak Readyload and Polaroid 4x5, as well as 6x7 and 6x9 rollfilm holders.
The rear standard also features a dual axis spirit level.
Balloon bellows, for wide angle photography and most of the Toyo modular system accessories can also be attached to this model.
All this in a modern view camera, which will have a "street price" of about $600, will make the Toyo 45CX an exciting tool for established as well as aspiring professional photographers.
General Information
Versatile, economical, full-movement view camera for studio, location and field. Compact frame and tapered bellows design. Rugged and light alloy and polycarbonate construction. Compact, portable design Rear Dual Axis Spirit Level, Rigid Interchangeable 450mm (39mm diameter) monorail with alignment guide.
Bellows
Interchangeable Bellows Tapered Normal / Wide Design accepts lenses down to 90mm Toyo Flexilast? Material Optional Wide Angle Bag Bellows.
Movements
Micro Fine Geared Focus on front & rear Tilt, Swing, Rise, Fall on front and rear Center tilt Design maintains focus and composition as you tilt.
Camera Back
Reversible Vertical/Horizontal Graflok Type Accepts all 4x5 cut film holders, Kodak ReadyloadR, PolaroidR 4x5, and all roll film holders - 6x7cm, 6x9cm, 6x12cm with Graflock fitting.
Specifications
| Tilt |
front 45+45° |
rear 45+45° |
| Swing |
front 30+30° |
rear 30+30° |
| Rise |
front 80mm |
rear 80mm |
| Shift |
front 30+30mm |
rear 45+45mm |
| Focusing |
front geared |
rear geared |
| Min. Extension |
80mm w/flat lens board |
67.5mm w/recessed 12.5mm board |
| Max. Extension |
445mm |
|
System Accessories
- Lens Boards Flat, Recessed (for Wide Angle Lenses) or predrilled.
- Compendium Lens Hoods with Gelatin Filter Holder
- Interchangeable Bellows Standard and Wide Angle
- Groundglass Focusing Aids: Fresnel Lens, Focusing Hoods, with and without Magnifiers
- Interchangeable Holders and Backs: Cut Film Holders, Roll Film Holders, Polaroid Holders, Digital Backs
|
